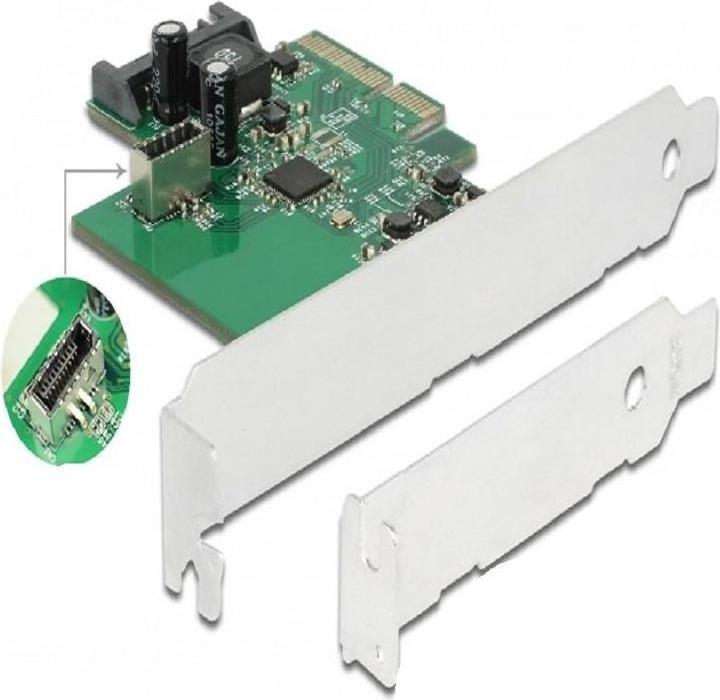

The Delock PCI Express card expands the PC with an internal USB 3.2 Key A 20 Pin socket. Various cables can be connected to the card to provide either a USB Type-C or a USB Type-A connection.

Package contents:

• PCI Express card
• Low profile bracket
• User manual

Connections:

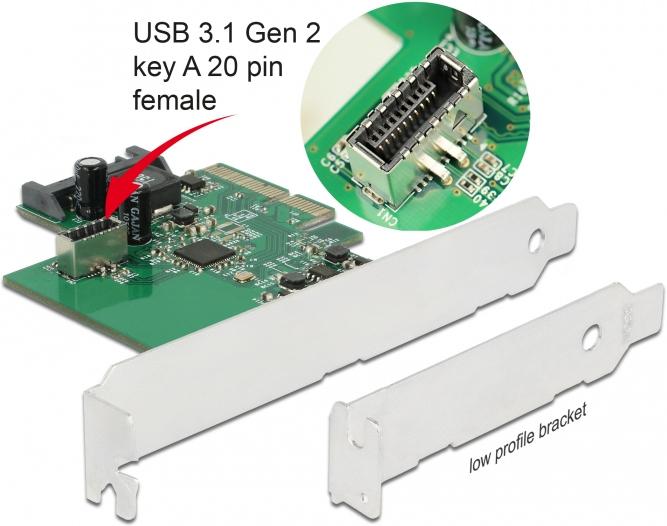

• Internal: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Key A 20 Pin socket
• 1 x SATA 15 Pin power connector
• 1 x PCI Express x4, V3.0

Chipset: Asmedia ASM3142

Data transfer rates up to:

• SuperSpeed USB 10 Gbps
• SuperSpeed USB 5 Gbps
• Hi-Speed 480 Mbps
• Full-Speed 12 Mbps
• Low Speed 1.5 Mbps

Power supply via PCI Express interface or through the SATA 15 Pin power connector. Supports eXtensible Host Controller Interface (xHCI) Specification 1.1. Compatible with USB Attached SCSI Protocol (UASP) Revision 1.0.

System requirements:

• Linux Kernel 4.4 or higher
• Windows 8.1/8.1-64/10/10-64
• PC with a free PCI Express x4 / x8 / x16 / x32 slot
• Optional: Power supply with a free SATA power connector.
