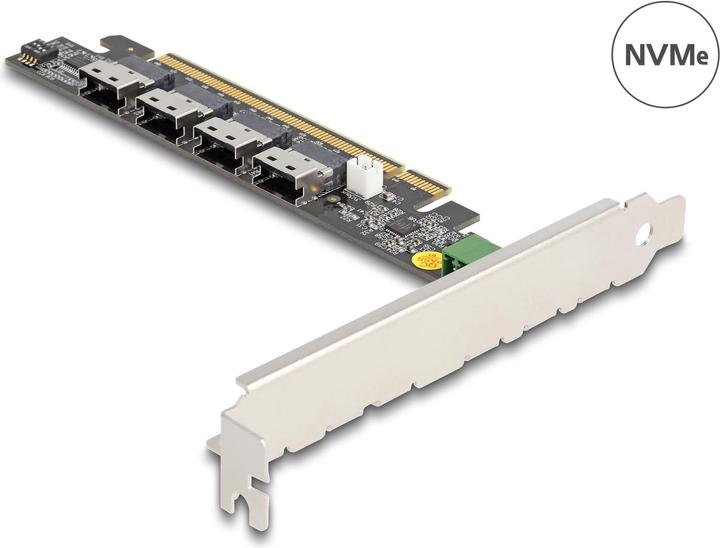

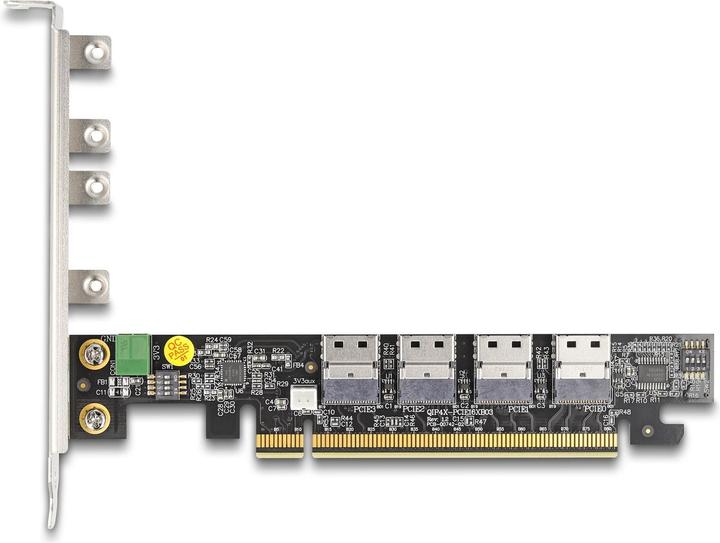

This PCI Express card from Delock expands the PC with four SFF-8654 ports. SSDs with U.2 connections can be connected to these ports using optional cables. The card transmits PCI Express signals and utilizes the NVMe protocol.

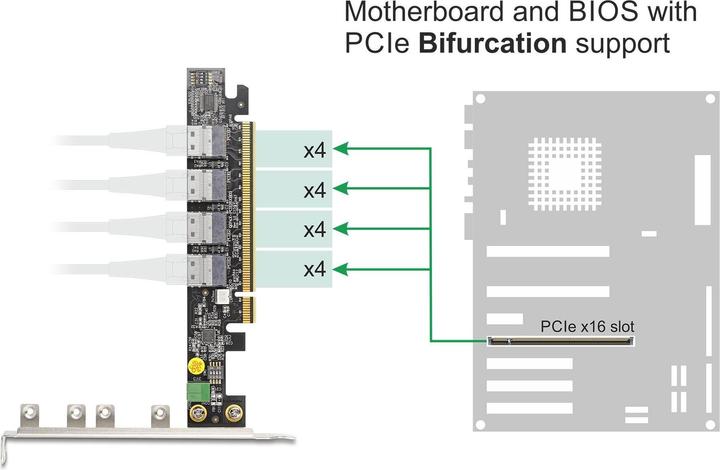

The card requires the PCIe bifurcation function of the motherboard to split the PCIe signal when multiple ports are in use.

Note: Without PCIe bifurcation, only the first SFF-8654 port of the card can be used.

Specifications:

• IOI article number: QIP4X-PCIE16XB03
• Connections:
• Internal:
• 4 x 38 Pin SFF-8654 4i socket
• 1 x PCI Express x16, V5.0
• 2 x 2 Pin 3.3 V power output
• Supports NVM Express (NVMe)
• Bootable

System requirements:

• Linux Kernel 3.16 or higher
• Windows 8.1/8.1-64/10/10-64
• PC with a free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

Package contents:

• PCI Express card.
