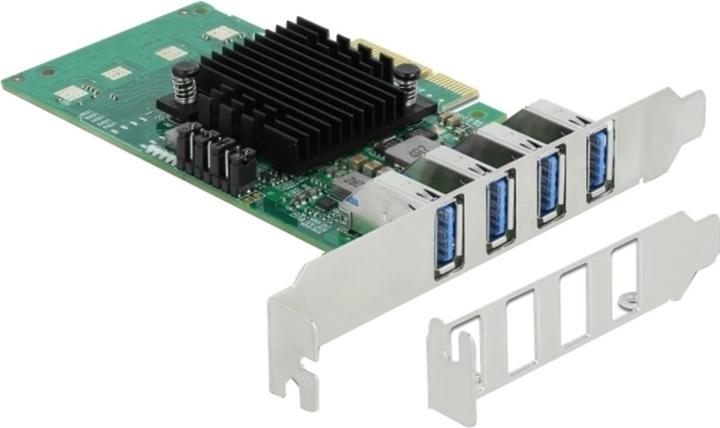

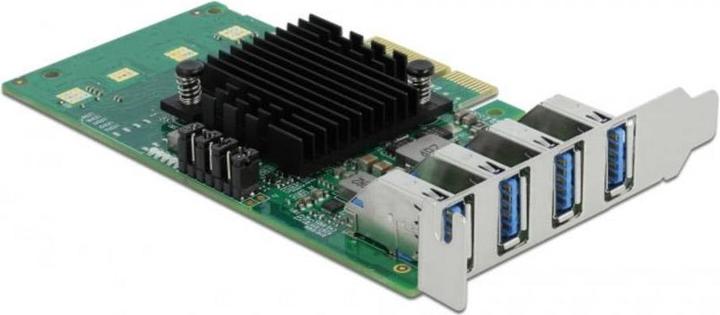

The Delock PCI Express card expands the PC with four external USB 3.0 ports. Each port is powered by a single Renesas chipset, enabling high data transfer rates. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected. Due to the vertical arrangement of the USB 3.0 ports, installation in a low-profile slot is possible.

No additional power supply required

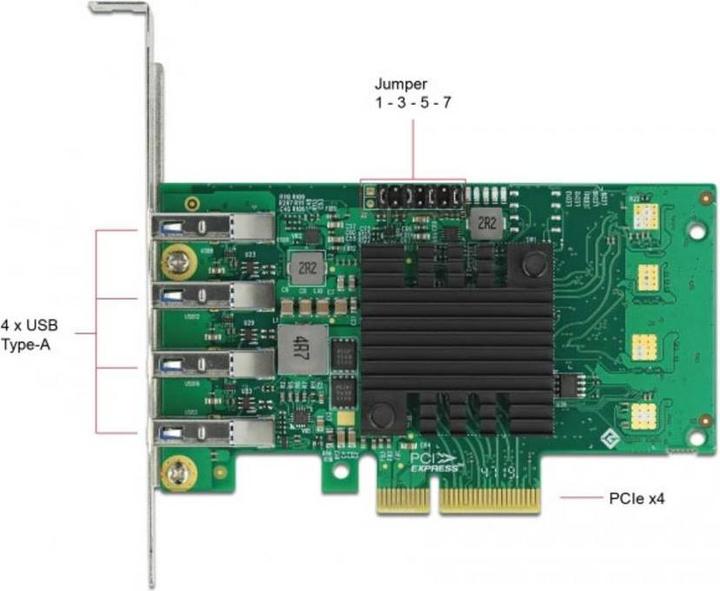

Thanks to the on-board 5 V DC power regulation, the PCIe card does not need an additional power supply. With the help of four jumpers, the current can be limited to 900 mA or 1.5 A at each USB port.

Specifications

• Connections:

external: 4 x USB 3.0 Type-A socket
internal: 1 x PCI Express x4, V2.0

• Chipset: 4 x Renesas uPD720202
• Data transfer rates up to:

SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps

• 4 x jumpers for setting 0.9 or 1.5 A output
• 9 x LED indicators
• Operating temperature: 0 °C ~ 60 °C

System requirements

• Linux Kernel 3.3 or higher
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with a free PCI Express x4 / x8 / x16 / x32 slot

Package contents

• PCI Express USB 3.0 card
• Low profile bracket
• User manual.
