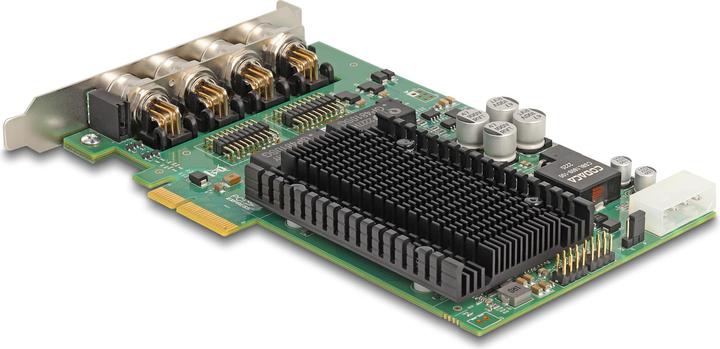

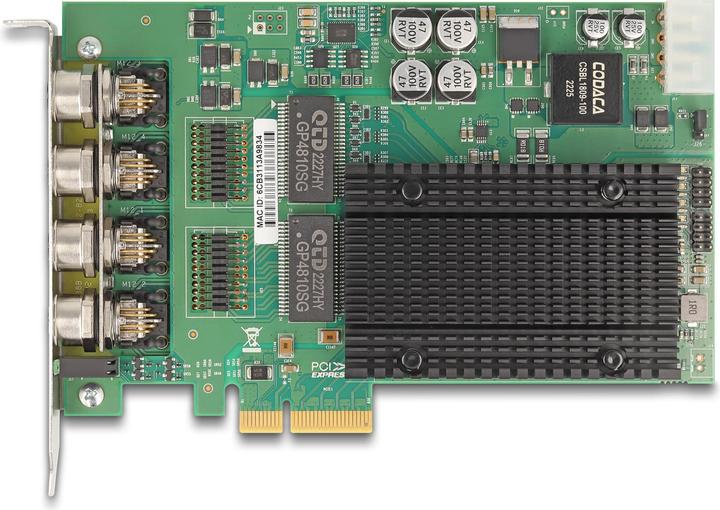

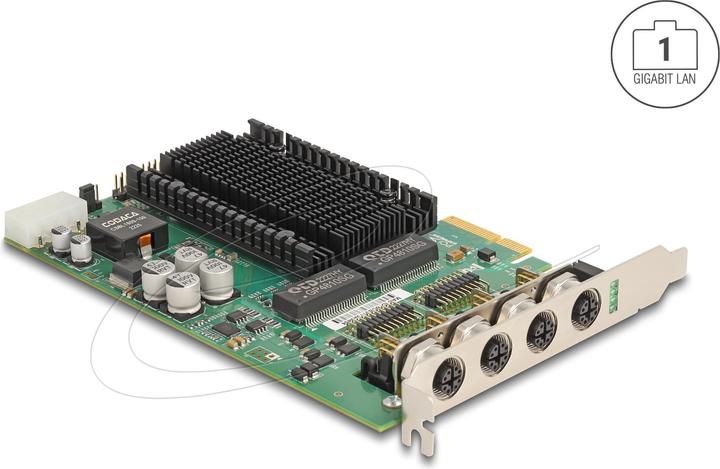

The PCI Express card by Delock offers four network ports with a transmission rate of up to 1000 Mbps. This industrial Ethernet adapter can be used to connect various components with M12 connectors, such as for machine control or automation.

PoE support
The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, allowing PoE-capable devices, such as IP cameras or PoE splitters, to receive power via the network cable.

Technical data
Connections:

• External:
• 4 x M12 socket 8 pin X-coded
• Internal:
• 1 x PCI Express x4, V2.1
• 1 x 4 pin power connector
• Chipset: Intel i350
• Data transfer rates:
• Ethernet up to 10 Mbps (half/full duplex)
• Fast Ethernet up to 100 Mbps (half/full duplex)
• Gigabit Ethernet up to 1000 Mbps (half/full duplex)
• PCI Express x4 up to 16 Gbps
• Suitable for Gigabit Ethernet image capture systems
• Supports IEEE 1588 PTP
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Output power: max. 120 W total
• LED indicator for connection and activity

System requirements

• Windows 10/10-64/11
• PC with a free PCI Express slot

Package contents

• PCI Express card
• Operating instructions

Packaging

• White box.
