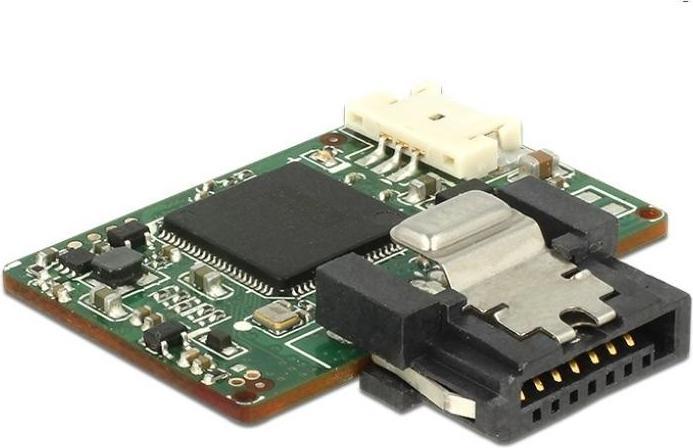

SATA - 6 Gb/s DOM Module, 32 GB, MLC, SATA Pin 8 Power, -40°C ~ 85°C

This SATA DOM module from Delock is particularly suitable for use in industrial PCs and servers. The module features an extended temperature range of -40 °C to 85 °C and is designed for operation under harsh conditions.

Advantage: No additional power supply is necessary, as it is provided through the Pin 8 connector. To utilize this application, a motherboard with a SATA Pin 8 connector is required. The SATA Pin 8 connector on the motherboard is colored yellow. If a SATA Pin 8 connector is not available, this module can also be used via the standard SATA connector. For this, power is supplied through the 3 Pin Power connector.

System Requirements:

A free SATA 8 Pin or SATA 7 Pin port.
For SATA 7 Pin port: Power supply with a free 4 Pin power connection.

Package Contents:

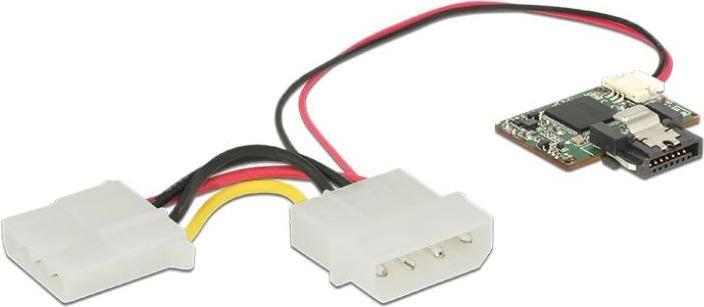

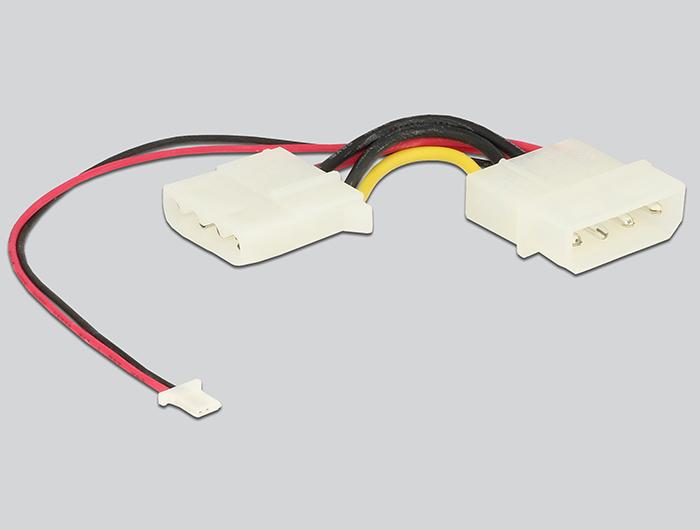

SATA Flash Module, Power Cable.

Packaging:

Antistatic bag.
Storage capacity: 32 GB.
Interface: SATA 6 Gb/s.
Supports SATA Pin 8 Power.
Chip: Toshiba.
Flash Type: MLC.
Maximum Speed: 100 MB/s read, 40 MB/s write.
Maximum Write Cycles: 3000.
Maximum Power Consumption: 1.8 W (5 V x 370 mA).
Write Protection: No.
ATA Security: Yes.
S.M.A.R.T.: Yes.
Thermal Sensor: Yes.
Dimensions (W x L x H): 30 x 28.4 x 7.4 mm.
Vibration: 20G at 7 ~ 2000 Hz.
Shock: 1500G at 0.5 ms.
MTBF: over 3 million hours.
Operating Temperature: -40°C to 85°C - Industrial grade.
Storage Temperature: -55°C to 95°C.
