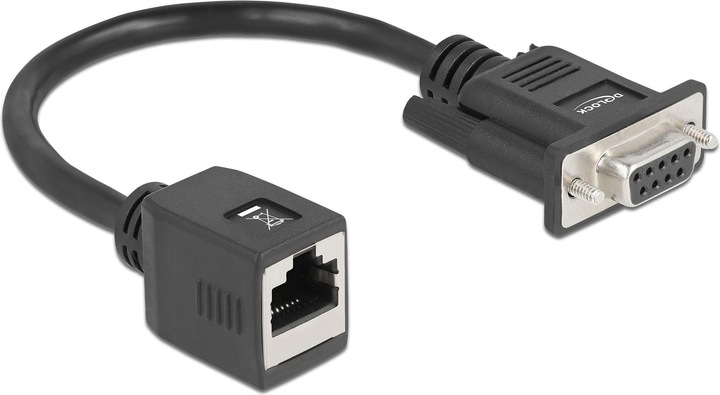

This serial adapter for cable extension from Delock is suitable for all serial interfaces. It connects devices such as printers, computers, gateways, cash register systems, etc. The adapter provides a simple solution for transmitting serial data from RS-232/422/485 interfaces using a Cat.5 cable within an existing cabling infrastructure.

A standard Category 5 (Cat.5) cable has significantly better transmission characteristics than a standard RS-232 cable. It allows for higher data rates to be transmitted over longer distances without additional signal amplification.

Warning! Not suitable for children under 36 months.

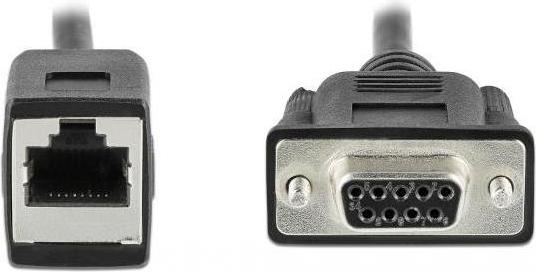

Connections:
1 x Serial DB9 socket with screws
1 x Serial RJ45 socket

Specification:
TIA/EIA-561

Signals:
1 x RJ45: RI(1), DCD(2), DTR(3), RXD(5), TXD(6), CTS(7), RTS(8), GND(4)
1 x DB9: RI(9), DCD(1), DTR(4), RXD(2), TXD(3), CTS(8), RTS(7), GND(5)

Data transfer rate:
921.6 Kbps up to 20 m
115.2 Kbps up to 300 m

Cable type:
Cat.5e

Cable length including connections:
Approx. 20 cm

System requirements:
One free DB9 port
One free RJ45 port

Package contents:
Adapter DB9 socket to RJ45 socket

Packaging:
Resealable bag.
