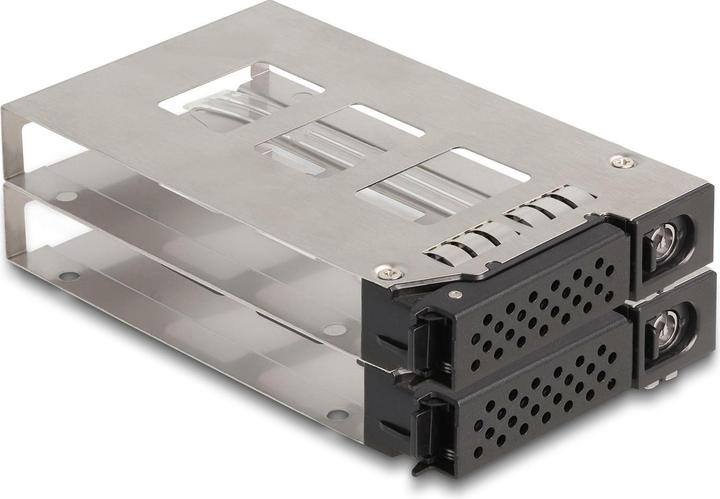

This stable metal hot-swap frame from Delock can be installed in an available 5.25" bay of a PC using the included frame. Additionally, it can be directly mounted in a server rack or 19" storage enclosure.

Quick SSD Replacement
Thanks to the special mechanism, the SSDs can be quickly and easily swapped out. For example, backups can be removed and stored in a secure location.

Insert with Lock and Suspension
To ensure that only authorized personnel can remove the hard drive, the hot-swap frame features a key lock. The sturdy metal carrier has springs on the top and bottom to reduce vibrations.

Specifications

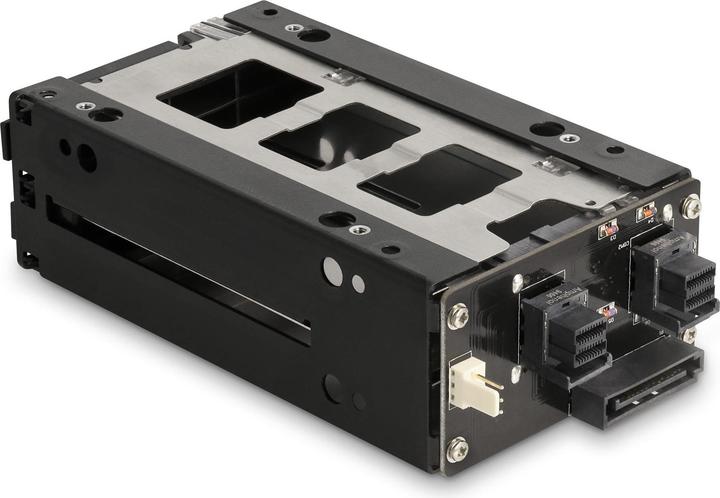

• Connections:

Internal:
2 x SFF-8639 socket
External:
2 x SFF-8643 socket
1 x SATA 15 pin connector
1 x 3 pin header for fan

• Suitable for 2.5" U.2 NVMe SSDs:

Hard drive height up to 15 mm

• Data transfer rate up to 32 Gbps
• Interface: PCIe Rev. 3.0
• Key-lock
• 4 x LED indicators
• Dimensions (LxWxH): approx. 140 x 72 x 40 mm
• Dimensions of 5.25" frame (LxWxH): approx. 145 x 140 x 42 mm

System Requirements

• Linux Kernel 5.4 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with an available 5.25" bay
• Two free U.2 ports
• Power supply with a free SATA power connector

Package Contents

• Hot-swap frame
• 2 x 2.5" hot-swap frame inserts
• 1 x 5.25" frame
• 2 x keys
• Screws
• User manual.
