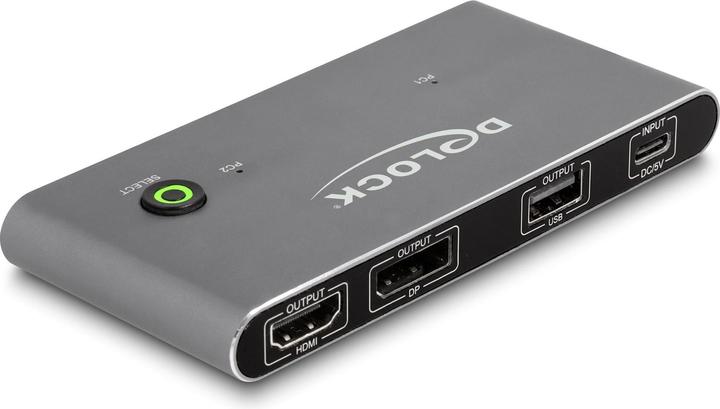

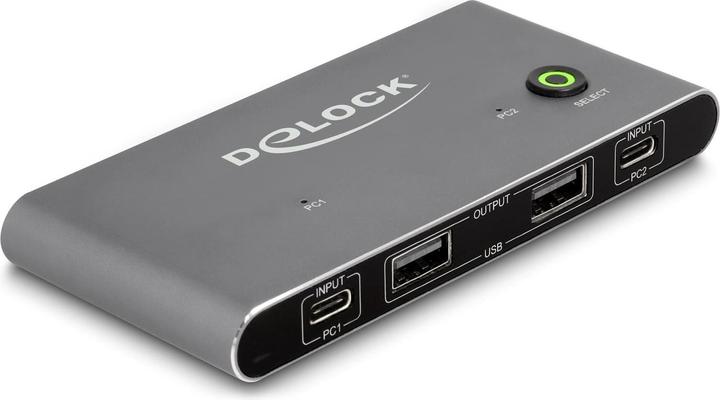

This KVM switch from Delock is a practical solution for operating two computers with USB-C DP Alt Mode output on one HDMI and one DisplayPort monitor. Two monitors can be used simultaneously at the outputs. You can switch from one computer to another with the press of a button on the device.

Peripherals
Additionally, you can connect a mouse, keyboard, or USB storage devices via three USB 2.0 ports.

USB Power Supply
The device is powered through a USB port, and a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.

Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports extended desktop configurations via DisplayPort. On Windows, the connected monitors are controlled individually and can be combined into a large display.

Specifications

• Connections:

Input:
2 x USB Type-C (DP Alt Mode) socket
1 x USB Type-C socket (5 V power supply)
Output:
1 x HDMI-A socket
1 x DisplayPort socket
3 x USB 2.0 Type-A sockets

• Switch button
• LED indicator for source
• Maximum resolution (dependent on system and connected hardware):

1 display: up to 7680 x 4320 @ 30 Hz
2 displays: up to 3840 x 2160 @ 60 Hz

• Functions: Mirroring or extending (Windows only)
• Metal housing
• Color: anthracite
• Dimensions (LxWxH): approx. 115 x 54 x 12 mm

System Requirements

• PC or laptop with a free USB Type-C port and DisplayPort Alternate Mode or
• PC or laptop with a free Thunderbolt 3 port
• Monitor or TV with HDMI connection
• HDMI cable
• Monitor or TV with DisplayPort connection
• DisplayPort cable
• Power source with a free USB Type-A socket

Package Contents

• KVM switch with USB

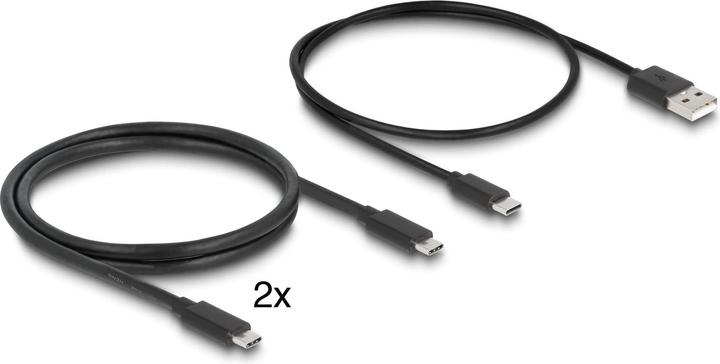

• 2 x USB-C male to USB-C male cables, length approx. 80 cm
• USB-C male to USB Type-A male cable, length approx. 100 cm.
