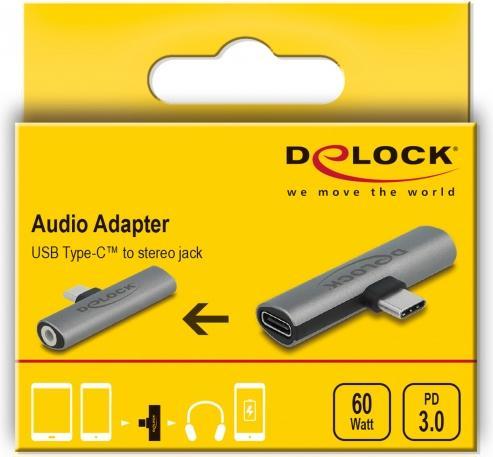

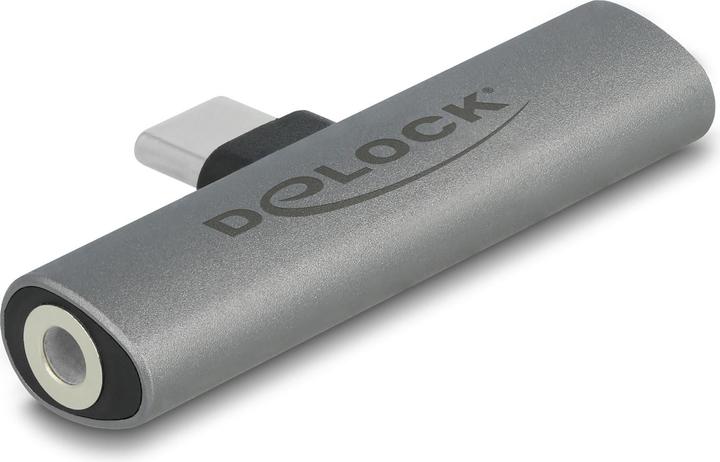

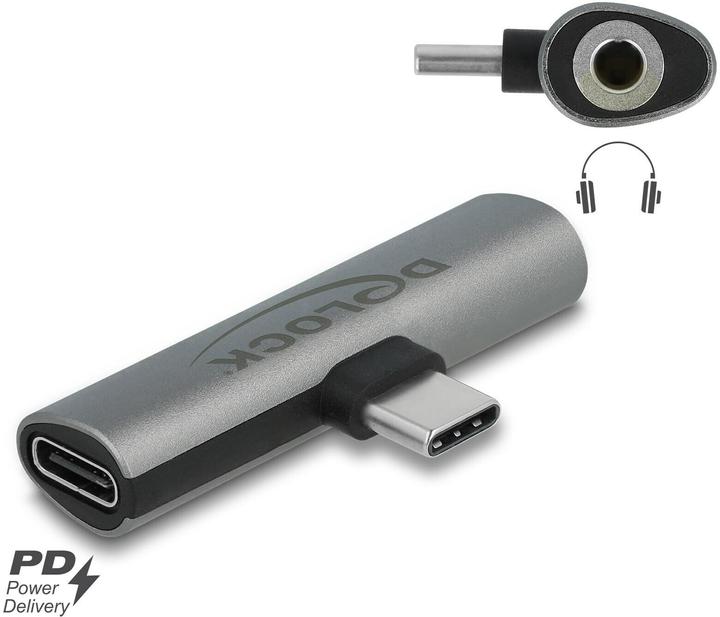

This audio adapter from Delock allows you to connect headphones or speakers with a jack plug to a device with a USB Type-C port, such as a smartphone, MacBook, or Chromebook.

USB Type-C Power Supply with PD 3.0
Additionally, the connected device can be charged via the USB Type-C port. The maximum charging power is 20 V / 3 A (60 W). The device also supports the PD 3.0 standard.

Note

• The USB Type-C interface of the device must support the output of digital audio signals.
• When connecting to a smartphone without PD functionality, the audio and charging functions are alternative, with the charging function taking priority.
• When connecting to a smartphone without Data Role Swap functionality, it may occur that the sound is no longer output when the power supply is plugged in.
• When connecting to a smartphone or notebook without Fast Role Swap functionality, it may happen that audio playback is briefly interrupted when plugging and unplugging the power supply.

Specifications

• Connections:

1 x USB Type-C plug
1 x 3.5 mm 4-pin jack socket
1 x USB Type-C socket (PD)

• Signal-to-Noise Ratio (SNR): approx. 93 dB
• DAC Sampling Rate: up to 24 Bit / 96 kHz
• ADC Sampling Rate: up to 16 Bit / 48 kHz
• Supports Digital Hi-Res Audio
• USB Power Delivery (PD) 3.0
• USB Bus Power
• Plug & Play
• Dimensions (LxWxH): approx. 50 x 16 x 9 mm
• Color: gray

System Requirements

• Android 11.0 or higher
• Chrome OS 91.0 or higher
• Linux Kernel 5.11 or higher
• Mac OS 11.2.3 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Device with free USB Type-C port
• Headphones or speakers with 3.5 mm jack plug

Package Contents

• Audio Adapter.
