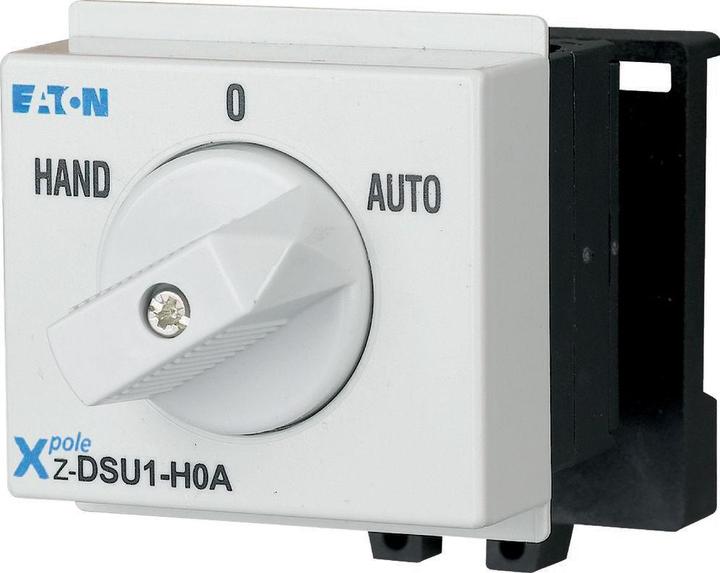

Eaton Rotary Switch Z-DSU1-H0A

Manufacturer: Eaton
Designation: Rotary switch 1p, UM, HA -0 - AU
Type: Z-DSU1-H0A
Switching function: Changeover switch
Number of contacts as changeover: 1
Number of poles: 1
Rated current: 20 A
Rated voltage: 690 V
Min. rated voltage: 440 V
Rated short-circuit breaking capacity: 0 kA
Short-circuit strength (Icw): 10 kA
Type of voltage: AC
With signal lamp: no
Color of the cap: other
Light source: other
Lamp socket: other
Max. lamp power: 0 W
Width in pitch units: 3
Installation depth: 60 mm
Protection class (IP): IP20
Printing/marking: other
Forced disconnection (according to DIN VDE 0113): no

The rotary switches of the Z-DS series are modular in design: The switch itself consists of the latching mechanism and the switching package. The switching cams (also called cam switches) are driven by a stable, torsion-resistant aluminum shaft. The switching package consists of one or more switching cells with one or two independent, double-breaking contacts. The connection of adjacent switch terminals, as required for the voltmeter switch Z-DSV, is integrated into the switch housing. This eliminates any obstruction when connecting the terminal wires.

Application: Suitable for practically any desired application, e.g., motor switches: garage doors, fans, electrically operated roller shutters, heating controls, lighting fixtures, instrument switches, various control purposes, etc. Execution according to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV.
EAN: 4015082488703.
