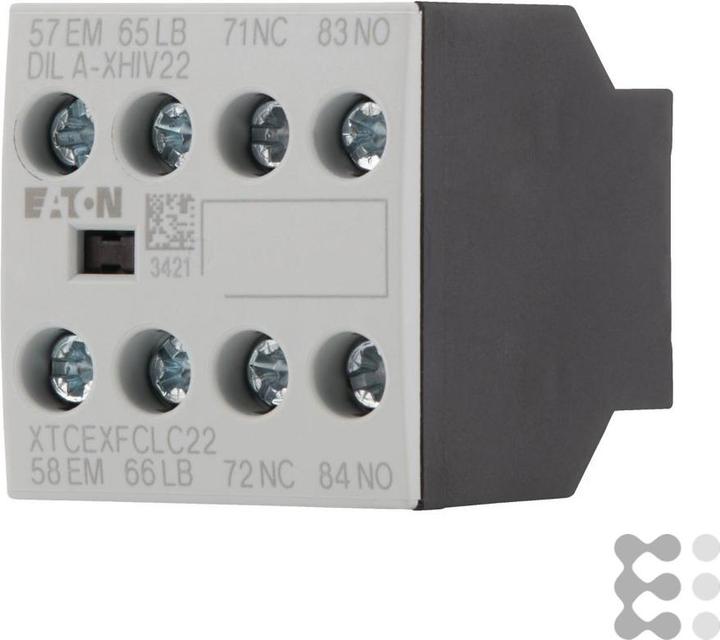

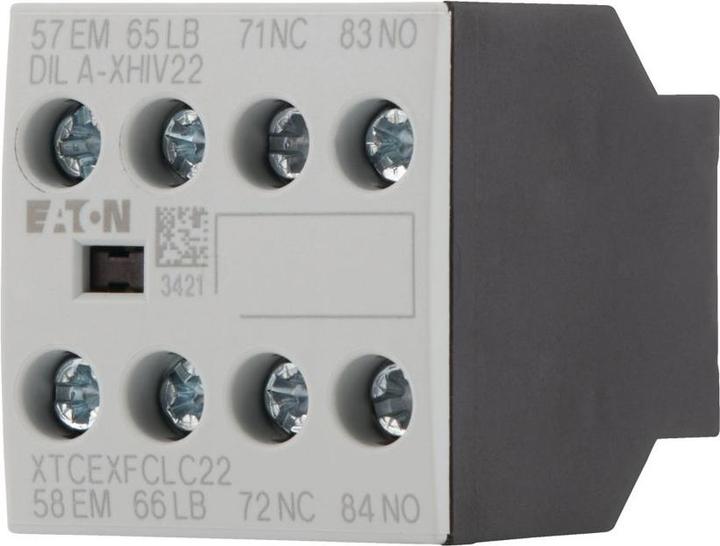

The DILA-XHIV22 auxiliary switch module from Eaton is a versatile and reliable component designed for standard applications. With a 4-pole contact configuration, this auxiliary switch offers a combination of normally closed and normally open contacts, allowing for flexible control in electrical circuits. The connection technology is via screw terminals, ensuring easy and secure installation. The auxiliary switch is rated for a nominal operating current of up to 4 A at AC-15 and can be used across various voltage ranges from 220 V to 415 V. Installation is achieved through front mounting, which allows for space-saving and user-friendly setup. The DILA-XHIV22 is compatible with a wide range of Eaton products, making it an ideal choice for expansions or repairs in existing systems. Additionally, the auxiliary switch meets the requirements of IEC/EN 60947-4-1, highlighting its reliability and safety in industrial applications.

• 4-pole contact configuration with 1 normally closed, 1 early close, 1 normally open, and 1 late open contact
• Easy installation via screw terminal connection
• Compatible with a variety of Eaton DILA and DILM products
• Suitable for applications with a nominal operating current of up to 4 A
• Complies with IEC/EN 60947-4-1 standards for safety and reliability.
