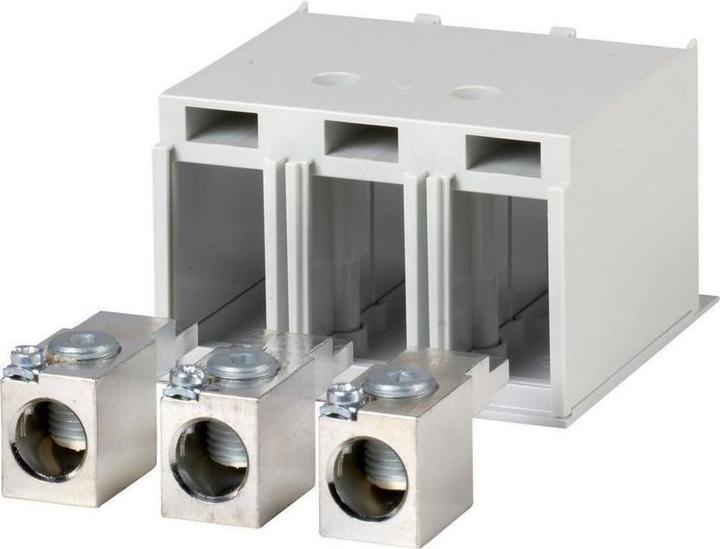

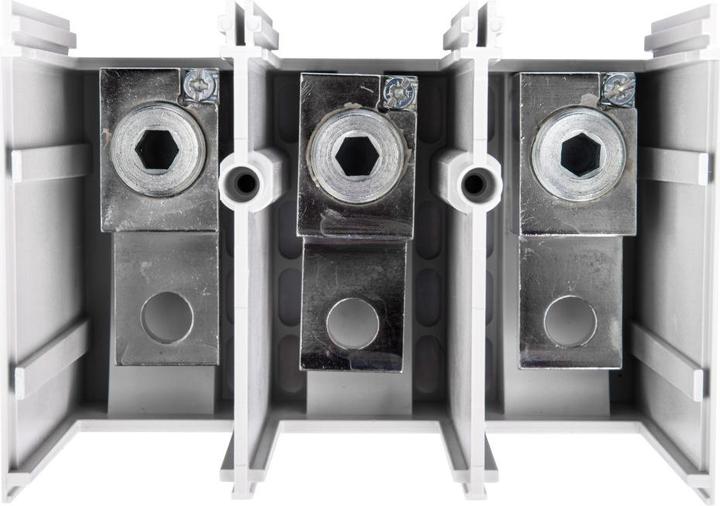

Eaton tunnel terminal NZM3-XKA1

Manufacturer: Eaton
Designation: Tunnel terminal 3p, 1 switch side
Type: NZM3-XKA1
Suitable for number of poles: 3
Version: Other

Eaton tunnel terminal NZM3-XKA1: Further details
Optional accessories for the NZM circuit-breaker series offer an extensive portfolio of application options for worldwide use. Installation is flexible and simple thanks to modular function groups.

Notes: Type contains parts for a top or bottom switch side for 3- or 4-pole switches. With control cable connection for 1x0.75-2.5 mm² (18-14 AWG) or 2x0.75-1.5 mm² (18-16 AWG) copper conductors as standard. Installation outside the switch housing. Use wire end ferrules for fine-stranded and highly flexible conductors. Maximum specified cross-section can only be connected with stranded conductors and without ferrules. The NZM3(-4)-XKSA cover must be fitted (included in the scope of delivery).

Suitable for: NZM3(-4), PN3(-4), N(S)3(-4).
