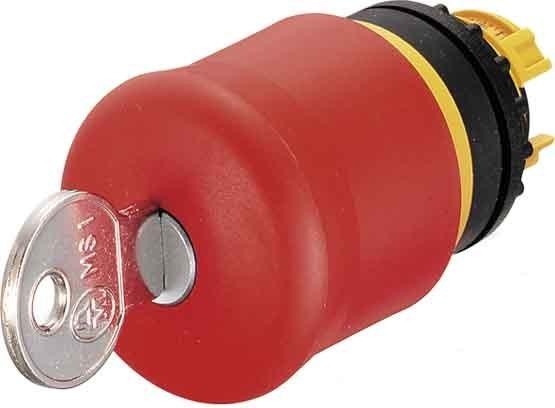

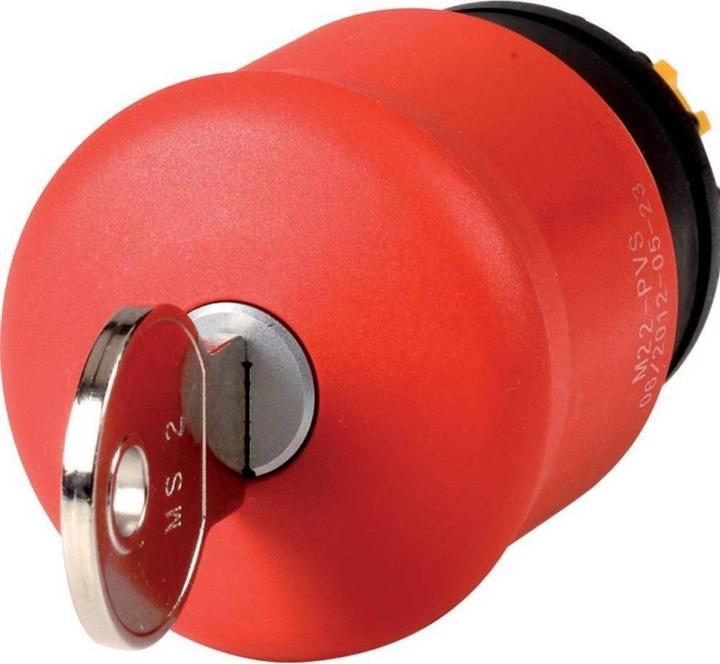

Eaton Emergency Stop Key Switch M22-PVS-MS2

Manufacturer: Eaton
Description: Emergency Stop Key Switch
Type: M22-PVS-MS2
Button Color: Red
Lens Shape: Round
Cap Diameter: 38 mm
Hole Diameter: 22.5 mm
Opening Width: 0 mm
Opening Height: 0 mm
Protection Class (IP): IP67/IP69K
Protection Class (NEMA): 4X
Button Shape: High
Suitable for Lighting: No
With Lighting: No
Lamp Supply Voltage: 0 V
Latching Switching Function: Yes
Momentary: No
With Front Ring: No
Material of Front Ring: Other
Front Ring Color: Other
Suitable for Emergency Stop: Yes
Type of Release: Key Release

New Product Improvement: Enhanced gripability through lateral knurling. The button meets protection classes IP66 and IP69K and is approved for worldwide use. The modular RMQ-Titan range includes a wide variety of types related to emergency stop and emergency stop buttons. Front elements are available in various shapes, with and without lighting, pull or turn release, with and without key. EAN: 4015081113217.
