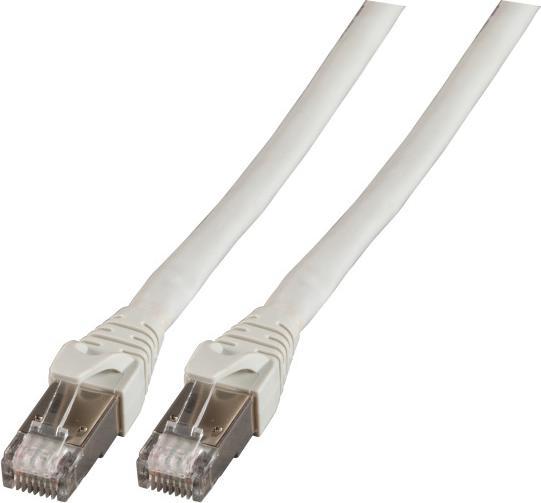

The conductor dimension AWG24/7 allows for patch cable lengths of up to 90 m, with class EA (ISO) up to 80 m possible due to the insertion loss of installation cable, Cat.6A (TIA), which is comparable to AWG24/1. Advantages over installation cables with field-terminated RJ45 plugs include cable flexibility, a smaller bending radius, and pre-termination. It features 2 x RJ45 plugs, shielded, IEC 60603-7-51, with 50µ gold plating and a patented design (conductor diameter >= 1.25 mm). The cable is S/FTP 4 x 2 x AWG24/7 PiMF with a FR-PVC outer diameter of 6.5 mm. It is flame retardant according to IEC 60332-1. The outer jacket is made of FR-PVC (flame retardant) and is UL approved, with optional LSZH or PUR materials. It includes overmolded premium bend relief with latch protection.

Main features:

• Cable length: 50 m
• Cable standard: Cat6a
• Connector 1: RJ-45
• Connector 2: RJ-45
• Gender: Male/Male
• Cable shielding: S/FTP (S-STP)
• Product color: Gray
• Cable class: EA
• Connection contacts coating: Gold
• Jacket material: Polyvinyl chloride (PVC)
• AWG cable size: 24/7
• Technical details: Cable color: Gray, Cable diameter: 6.5.
