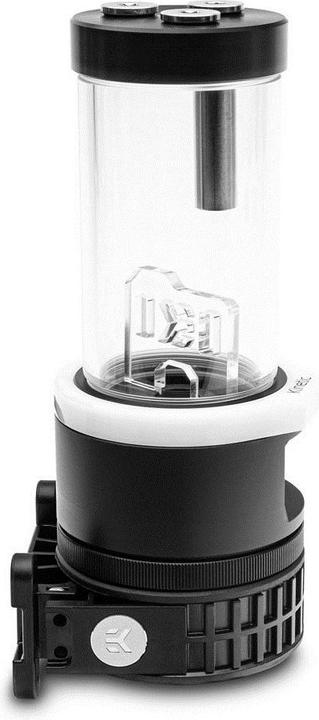

EKWB EK-Quantum Kinetic TBE 200 D5 PWM D-RGB - Acetal

Price in EUR including VAT
Delivered between Fri, 5.12. and Tue, 9.12.
10 pieces in stock at supplier
free shipping

Product details

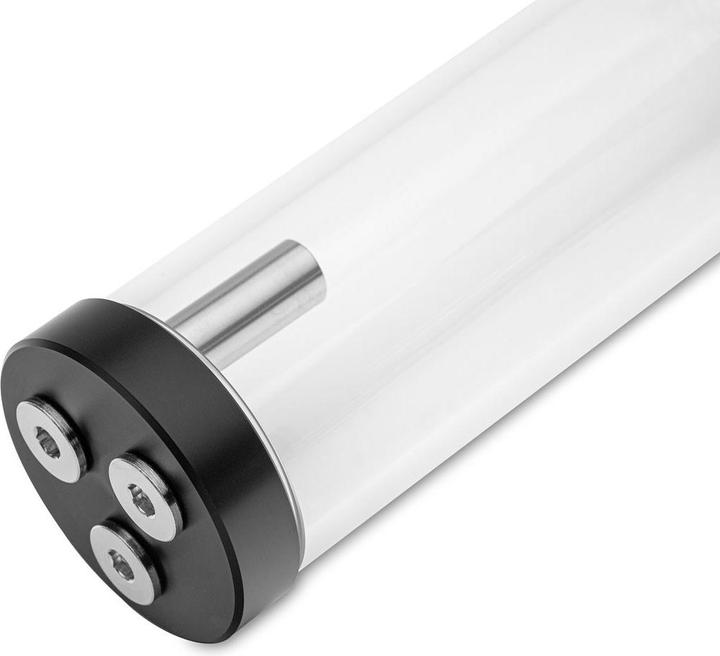

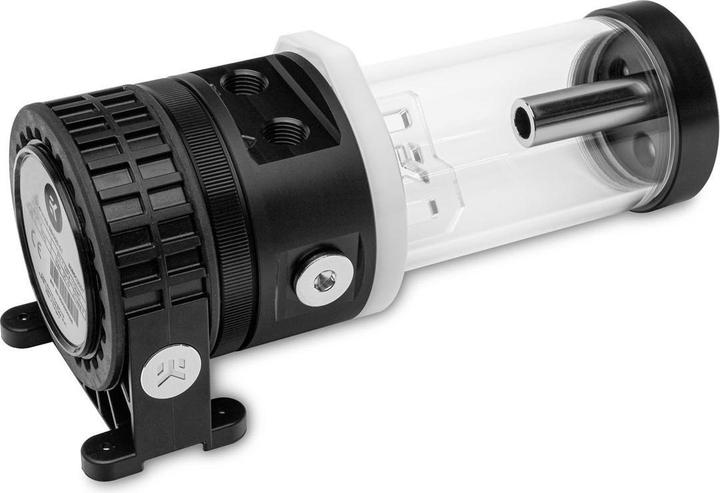

The expansion tank is equipped with a total of six G1/4" connections, allowing users to choose the optimal setup for their cooling loops. Three of these connections are located on the top, one of which features a pre-installed inner tube made of nickel-plated brass, preventing coolant from splashing in the tank when the top is used as an inlet. It also prevents air from being drawn in by the pump and keeps the coolant from foaming. Each of these connections can also be used to fill the system or add additional accessories (thermal probes, LEDs, etc.). Three more standard G1/4" connections are available in the lower housing. The upgrade compared to the previous combo unit is the third available side connection, which can be used as an optional inlet or drain. A special rubber damper is used to decouple the pump body from the mounting bracket, ensuring silent operation without noise caused by vibrations. Additionally, horizontal and vertical positioning is supported to simplify tubing routing. The 60 mm diameter tube is made of high-quality acrylic material, while the bottom of the expansion tank and the top of the pump are made of CNC-machined black POM acetal. Sealing is provided by a high-quality EPDM O-ring. The integrated addressable D-RGB lighting is compatible with the common RGB synchronization technologies of all major motherboard manufacturers.

Key specifications

Max. flow
1500 l/h
Max. delivery head
3.90 m
Pump Power connection
4PIN Molex, 4PIN PWM
water inlet
G1/4" female thread
water outlet
G1/4" male thread
Item number
12827156

General information

Manufacturer
EKWB
Category
Water cooling pumps
Product Safety
Release date
2.3.2020
Sales rank in Category Water cooling pumps
7 of 129
External links

Water cooling pump properties

pump type
Other pumps
Max. delivery head
3.90 m
Max. flow
1500 l/h
Voltage
12 V
Pump Power connection
4PIN Molex, 4PIN PWM
water outlet
G1/4" male thread
water inlet
G1/4" female thread
Max. system temperature
60 °C
Exact colour description
BlackTransparent
Power consumption
23 W
Material
AcetalAluminium oxideHard coalPPS plasticStainless steel

Origin

Country of origin
ChinaGermany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

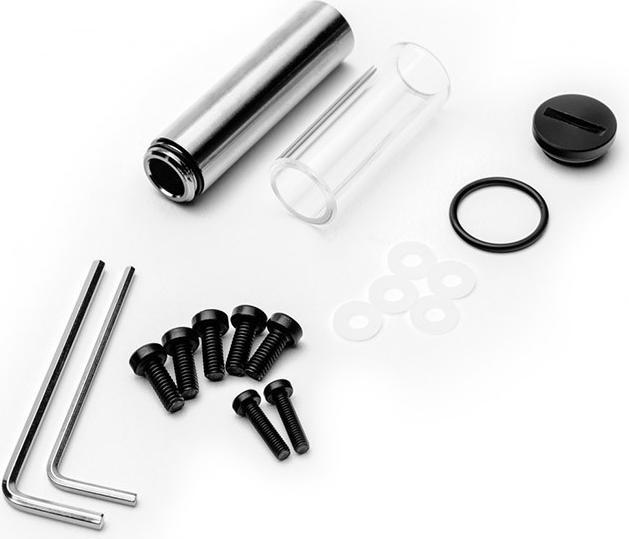

Installation kitInstruction manual

Product dimensions

Length
200 mm
Width
60 mm
Height
60 mm

Package dimensions

Length
22.50 cm
Width
11.50 cm
Height
10 cm
Weight
976 g
