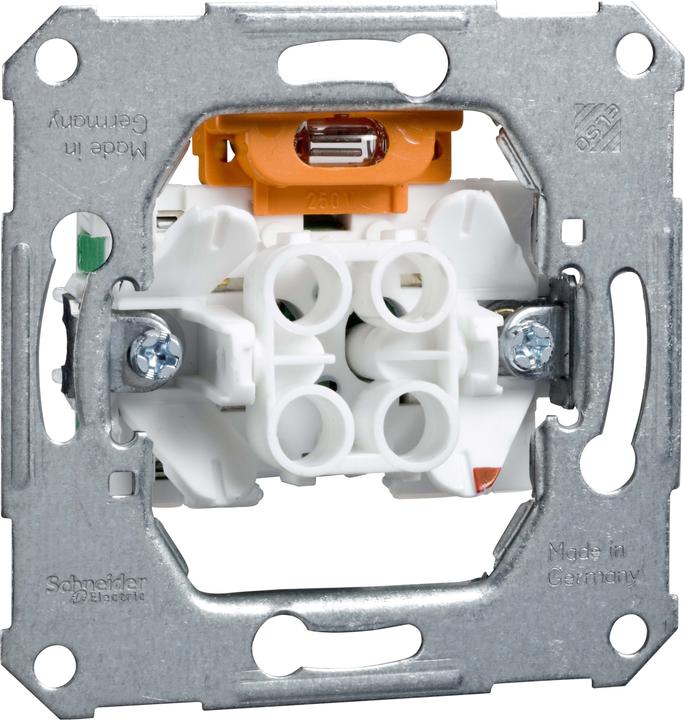

Elso Change Control Switch 111610

Manufacturer: Elso
Designation: Change Control Switch, 10A, Screw Terminal
Type: 111610
Switching Type: Changeover Switch
Operation Type: Rocker/Button
Composition: Base element with central cover plate
Push Button: no
Number of Actuation Rockers: 1
Mounting Type: Flush-mounted
Mounting Method: Claw/Screw Mounting
With Mounting Plate: yes
Halogen-free: yes
Surface Protection: untreated
Text Field/Label Area: no
Lighting: no
Lighting Function: Control and Orientation
Suitable for Protection Class (IP): IP20
Rated Voltage: 250 V
Rated Current: 10 A
Switching Current for Fluorescent Lamps: 10 AX
Feedback Contact: no
Connection Type: Screw Terminal
Washing Machine Switch: no
Device Width: 71 mm
Device Height: 71 mm
Device Depth: 37 mm
Installation Depth: 28 mm
Min. Depth of Device Box: 40 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no

Elso Change Control Switch 111610: additional details
Switching Mechanism 10 A 250V AC Screw Terminals
Connection Range for Information Lines from Wire Diameter 0.5 mm, for Copper Conductors 1.5 mm² and 2.5 mm²
Change Control Switch equipped with a light-intensive marking assembly.
EAN: 4013984106510.
