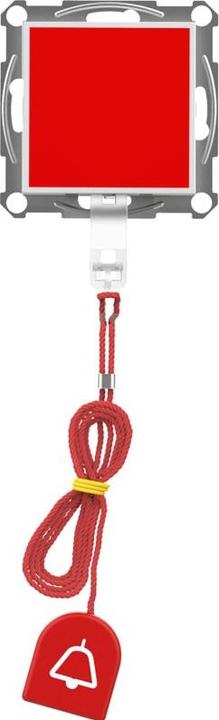

Elso Pull Switch Insert ELG745030

Manufacturer: Elso
Description: Pull switch insert with central plate
Type: ELG745030
Design: Pull cord
Color: Red
Voltage type: DC
Nominal voltage DC: 24 V
With transformer: No
Protection class (IP): IP20
Device width: 55 mm
Device height: 55 mm
Device depth: 20 mm

Further details:
This pull switch insert features a central plate in red and includes a 3 m pull cord for SIGMA care ELSO Joy. The pull switch is designed to trigger a call, which is indicated both visually and acoustically on a visibly mounted room module outside the room. The red pull cord measures 3 m and has a red handle with a call symbol, with housing sides that glow red to indicate call activation. A locking tab on the back of the device ensures it remains securely in place during strong pulls. Installation is vertical on a 60 mm flush-mounted box, suitable for use in a wheelchair-accessible restroom. The operating voltage is DC 24 V ± 10 %, via the room module ELG745010, with a maximum current consumption of 40 mA. The connection terminal is a plug terminal, 4-pole, with 2 wires per pole, and the cable type is J-Y(St)Y, 2 x 2 x 0.8 mm. The protection class is IP20, with a maximum cable length of 50 m. Dimensions are 55 x 55 x 20 mm. An additional adapter frame is required for use in ELSO Fashion/Riva/Scala designs.
