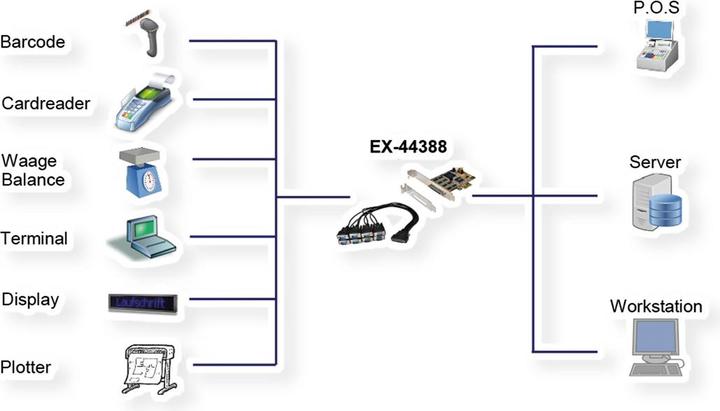

The EX-44388 PCI-Express I/O card provides eight serial RS-232 high-performance UART 16C1050 outputs. It is designed to expand a PC, workstation, or server with eight additional serial ports via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and does not conflict with IRQ and I/O addresses. Additionally, +5V or +12V can be configured on pin 9 of the serial connector for a POS system (Power over System). The EX-44388 comes with a low-profile bracket, allowing the card to be installed in slim PC cases.
Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 256 Byte
±15 kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
PCIe interface compatible with specifications 1.0a to 3.0
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports RTS/CTS and XON/XOFF flow control
Supports +5V or +12V on pin 9 of the serial connectors
Chipset: SystemBase SB16C1058PCI
Package includes:

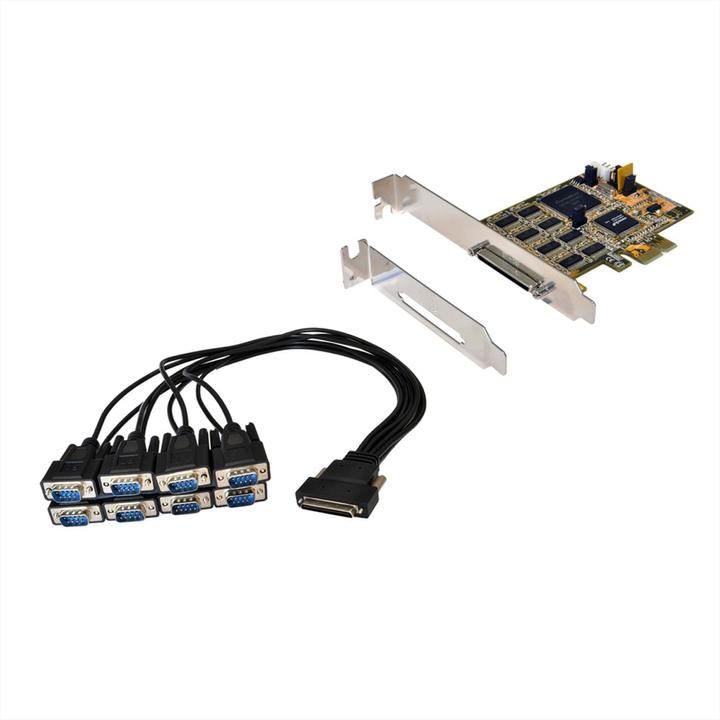

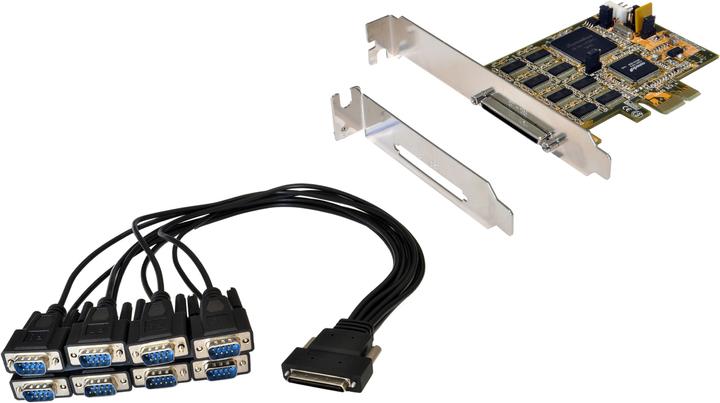

EX-44388, octopus cable, driver CD, low-profile bracket, manual.
Expansion card form factor | Low profile |
Data ports | RS-232 (8x) |
Internal connection options | PCI Express x1 |
Expansion slot | PCI Express x1 (1x) |
Documents | |
Item number | 13369211 |
Manufacturer | Exsys |
Category | Controller cards |
Manufacturer no. | EX-44388 |
Release date | 14.3.2016 |
Expansion card form factor | Low profile |
Data ports | RS-232 (8x) |
Internal connection options | PCI Express x1 |
Expansion slot | PCI Express x1 (1x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Weight | 1000 g |
Width | 89 mm |
Length | 75 mm |
