Exsys EX-45362 Built-in serial interface card/adapter

Price in EUR including VAT
Ratings
BrandMore from Exsys
Delivered between Mon, 7.7. and Wed, 9.7.
More than 10 pieces in stock at supplier
free shipping

Product details

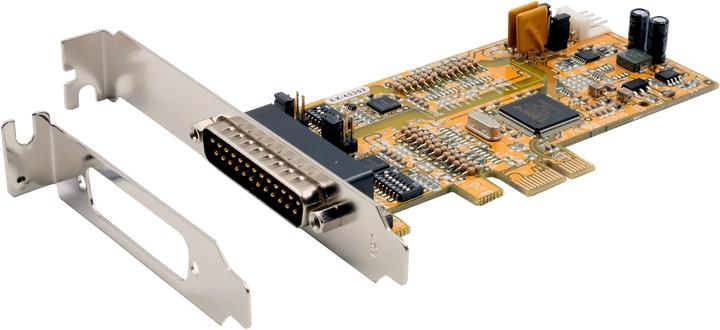

The EX-45362 PCIe I/O card provides two serial RS-232, 422, and 485 high-performance UART 16C550 outputs. Each port can be independently configured as RS-232, 422, or 485. It is designed to expand two additional serial combo ports for PCs, small workstations, or servers via the PCIe bus. The card is fully PCIe Plug-and-Play compatible and has no issues with IRQ and I/O address conflicts. It supports ATATM Auto RS-485 transmitter features. Additionally, +5V or +12V can be configured on pin 9 of the serial RS-232 connector for a POS system (Power over System). The card comes with a low-profile bracket for slim PC cases.

Main features:

  • Connections and interfaces: Built-in Yes
  • Host interface: PCIe
  • Output interface: Serial
  • Form factor: PCIe card, low profile
  • Serial interface: RS-232/422/485
  • Power: Plug & Play Yes
  • Data bits: 5, 6, 7, 8
  • Stop bits: 1, 1.5, 2
  • Design: RoHS compliant Yes
  • Certification: CE.

Key specifications

Expansion card form factor
Low profile
Data ports
RS-422 (1x)
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf
Item number
15803061

General information

Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-45362
Release date
30.3.2016

Controller properties

Expansion card form factor
Low profile

Peripheral port

Peripheral connections
RS-232, RS-422 (1x)
Data ports
RS-422 (1x)

Internal interfaces

Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
300 g
Width
120 mm
Length
64 mm

Package dimensions

Length
22.40 cm
Width
15.50 cm
Height
3.60 cm
Weight
274 g
