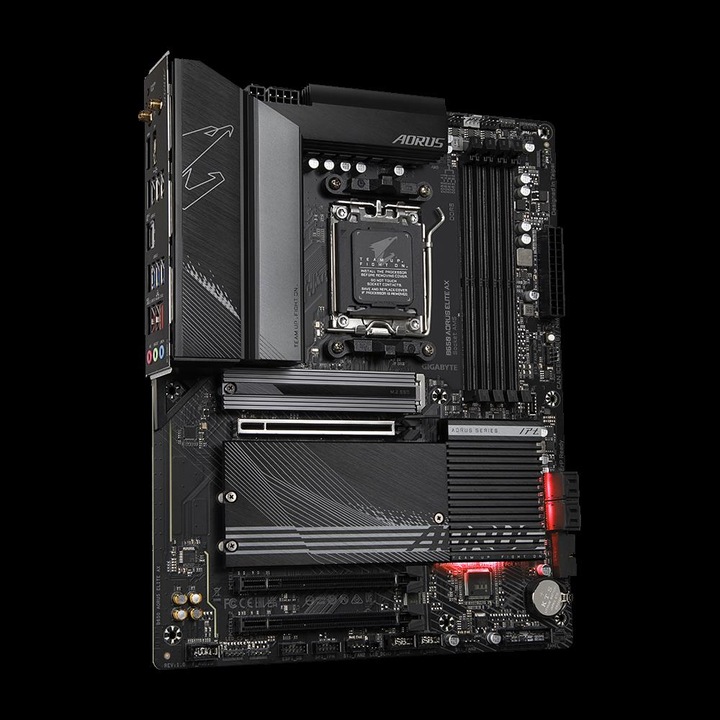

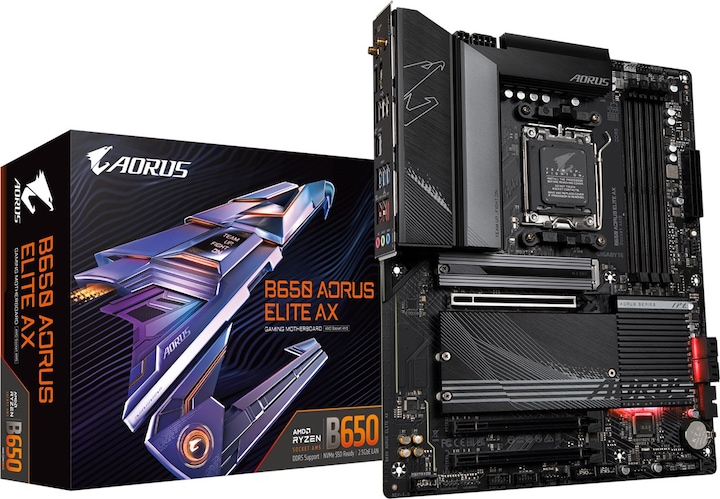

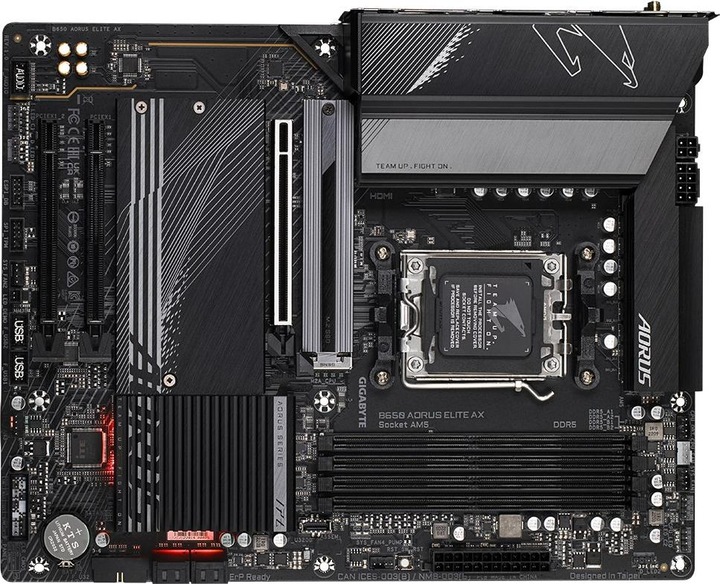

Gigabyte B650 AORUS ELITE AX
AM5, AMD B650, ATXProduct details
The Gigabyte B650 AORUS ELITE AX is a powerful motherboard designed for the latest AMD Ryzen 7 processors. With the AM5 socket, it offers a future-proof platform for demanding PC users. The motherboard supports DDR5 SDRAM with a maximum capacity of 128 GB, ensuring high performance and speed for modern applications and games. Support for various storage drive interfaces, including M.2 and SATA III, allows for flexible and fast data storage. Additionally, the B650 AORUS ELITE AX provides a variety of networking options, including 2.5 Gigabit Ethernet and Wi-Fi 6E, to ensure a fast and stable internet connection. With its ATX form factor and extensive connectivity options, this motherboard is ideal for building a high-performance PC.
- Supports AMD Ryzen™ 7 processors with AM5 socket
- Maximum RAM capacity of 128 GB with DDR5 SDRAM
- Diverse storage options with M.2 and SATA III interfaces
- Integrated 2.5 Gigabit Ethernet and Wi-Fi 6E for fast network connections
- Extensive connectivity options, including USB-A and HDMI.
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Item number | 22613746 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B650 AORUS ELITE AX |
Release date | 11.10.2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5-6600 |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

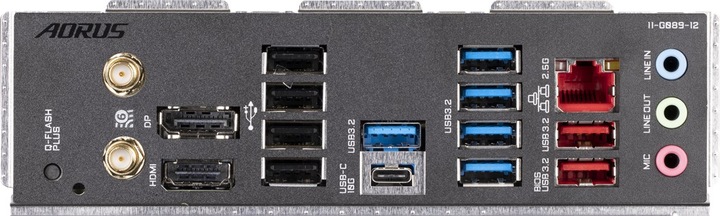

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 2.5GbE LAN |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (3x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 2 (4x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 305 mm |
Width | 305 mm |
Height | 27.10 mm |
Weight | 1500 g |
Length | 33.90 cm |
Width | 28 cm |
Height | 8.50 cm |
Weight | 2.11 kg |
