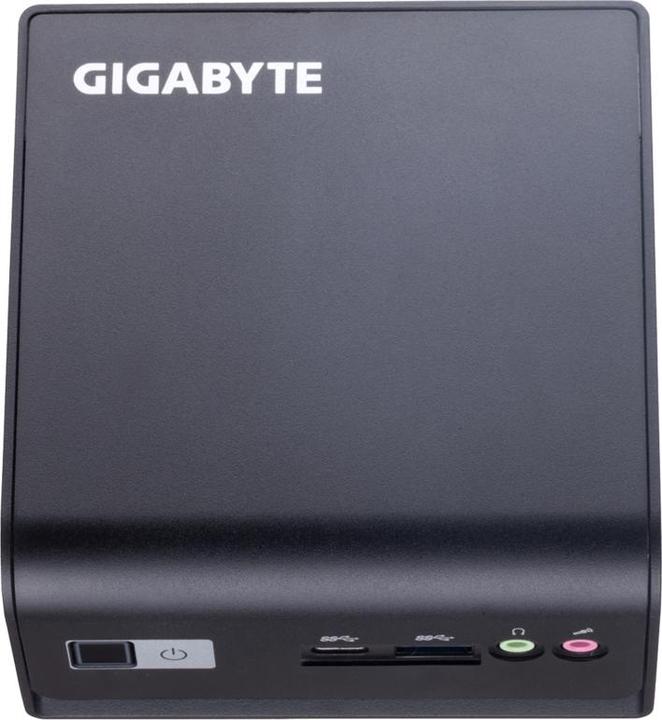

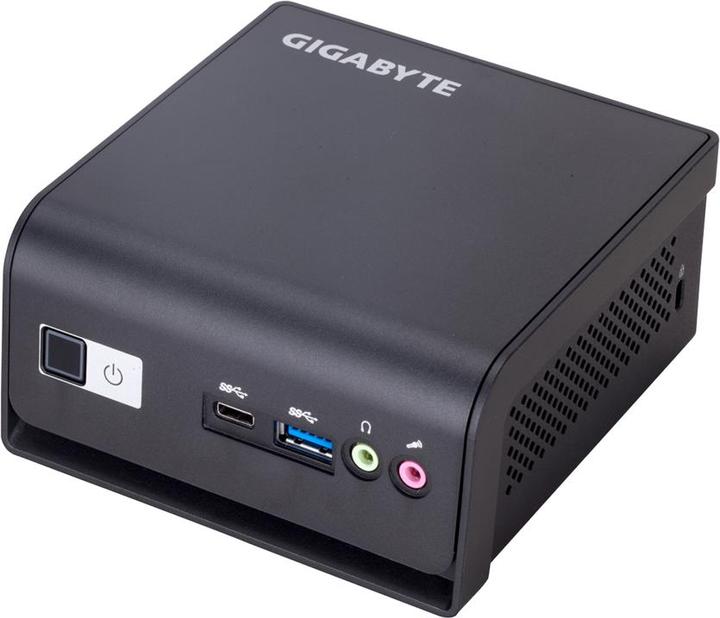

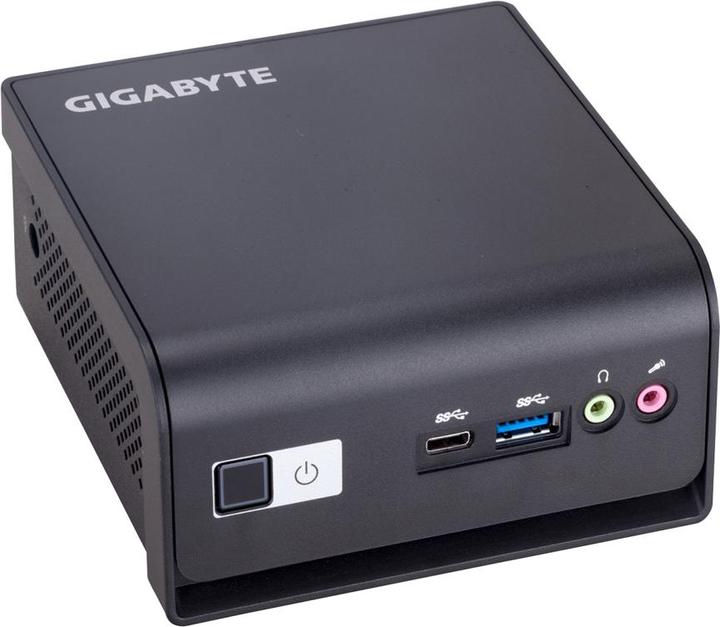

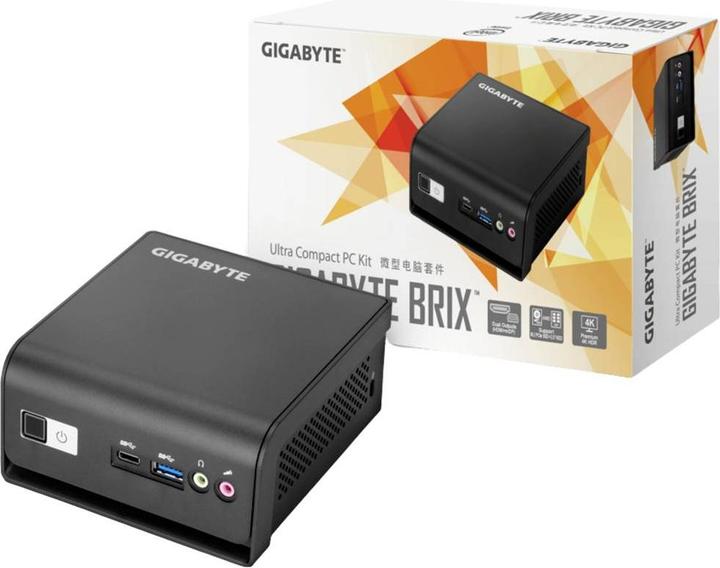

Gigabyte GB-BMCE-5105 (rev. 1.0)
Intel Celeron N5105More than 10 pieces in stock at supplier
Product details
Brix with the latest Intel Pentium Silver and Celeron processors offer amazing video conferencing capabilities, faster wireless connections, improved overall application and graphics performance, as well as long battery life. Brix featuring the Intel Pentium Silver and Celeron processor family provides an unmatched balance of performance, experience, and value for education and entry-level computing. The platform offers ultra-fast Wi-Fi, 4K media support, next-generation Intel UHD graphics, and enhanced security improvements with the platform and operating system of your choice, all at a price aimed at users seeking a comprehensive experience at an affordable cost.
The new generation of small processors from Intel is significantly more powerful than before. Thanks to the new 10nm manufacturing processes and the new core/GPU architectures, users can not only benefit from a performance boost but also enjoy UHD content with unprecedented detail. The overall system benchmark can easily exceed 40% and more.
Number of processor cores | 4 -Core |
Graphics card model | UHD Graphics 605 |

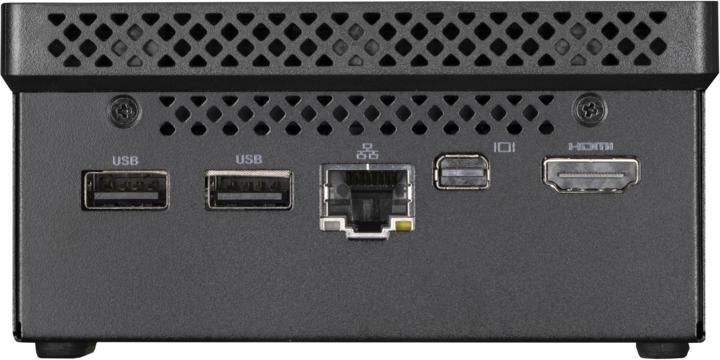

Network connections | RJ45 (1x) |
Video connections | DVI (1x), HDMI (1x) |
Memory type | DDR4-RAM |
USB ports | USB-A |
Item number | 21018386 |
Manufacturer | Gigabyte |
Category | Barebones |
Manufacturer no. | GB-BMCE-5105 |
Release date | 6.12.2021 |
External links |
Design | Small Form |
Processor type | Intel Celeron N5105 |
Clock frequency | 2.80 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Max. turbo clock rate | 2.90 GHz |
Max. TDP | 10 W |
Processor properties | Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 1 |
Max. memory slots | 1 |
Max. RAM | 16 GB |
Graphics card model | UHD Graphics 605 |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (3x) |
Network connections | RJ45 (1x) |
Connectivity | WLAN |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Bluetooth version | 4.2 |
Video connections | DVI (1x), HDMI (1x) |
Audio outputs | 3.5mm headphones |
Power | 65 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | VESA bracket |
Weight | 400 g |
Width | 112.60 mm |
Length | 119.40 mm |
Height | 46.80 mm |
Length | 28.80 cm |
Width | 17.10 cm |
Height | 8.50 cm |
Weight | 1.29 kg |
