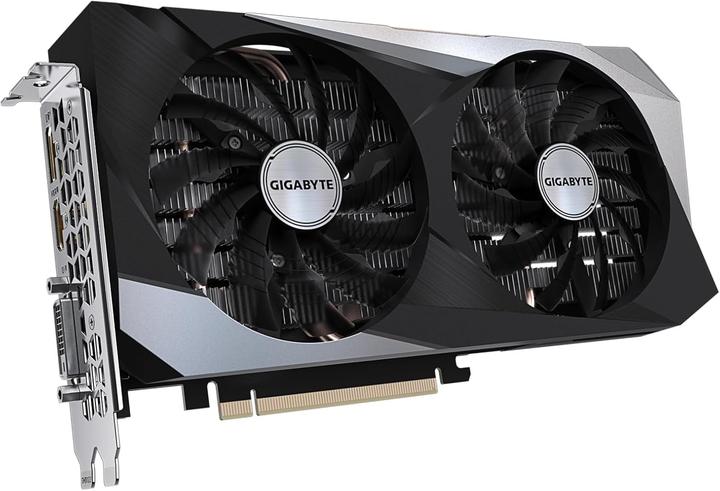

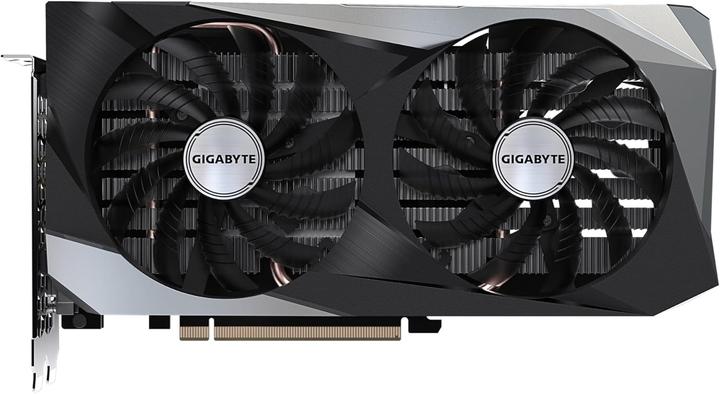

The WINDFORCE cooling system features two 100mm fans with unique blades. The heat pipe makes direct contact with the GPU, and together with alternately rotating active 3D fans and screen cooling, it ensures highly efficient heat dissipation. This reduces turbulence from the adjacent fans and increases air pressure. GIGABYTE rotates the adjacent fans in the opposite direction, so the airflow direction between the two fans is the same, further reducing turbulence and increasing air pressure. The airflow is divided by the triangular fan edge and gently directed through the 3D strip curve on the fan surface, effectively enhancing airflow. The 3D active fan provides semi-passive cooling, and the fans remain off when the GPU is under low load or low power during gaming. This allows gamers to enjoy gameplay in complete silence when the system is idle.
Max. connected monitors | 3x |
Max. video resolution | 7680 x 4320 pixels |
Graphics card model | GeForce RTX 3050 |
Number of shaders | 2560x |
Video memory clock | 14 GHz |
Power consumption | 450 W |
Length | 24.36 cm |
Item number | 24639657 |
Manufacturer | Gigabyte |
Category | Graphics card |
Manufacturer no. | GV-N3050WF2OC-8GD |
Release date | 16.3.2023 |
Max. connected monitors | 3x |
PCI Express version | PCIe 4.0 |
Max. video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2 slots |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 3050 |
Clock frequency | 1792 MHz |
Boost frequency | 1792 MHz |
Number of shaders | 2560x |
Video memory type | GDDR6 |
Storage capacity | 8 GB |
Video memory clock | 14 GHz |
Memory Interface | 128 bits |
Memory Bandwidth | 28 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 2x |
DirectX version | 12 |
OpenGL version | 4.6 |
GPU microarchitecture | NVIDIA Ampere |
GPU manufacturer technology | NVIDIA DLSS 3 |
Video connections | DisplayPort (1x), DVI-D (1x), HDMI (1x) |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Power consumption | 450 W |
Min. recommended system performance | 450 W |
Power connectors | 8-pin PCI-E |
Length | 24.36 cm |
Width | 4.02 cm |
Height | 12.48 cm |
Product Safety |
Length | 29.50 cm |
Width | 5 cm |
Height | 21 cm |
Weight | 830 g |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Galaxus
Gigabyte's Gaming OC needs a lot of space in the case for its three 75-millimetre fans. At 28.4 centimetres, it is the longest card in the test, but it gets by with two slots and, at 11.6 centimetres high, barely protrudes above the slot bezel. In addition to two DisplayPorts, two HDMI outputs are screwed onto it...
