The GeForce RTX 5060 Ti is a powerful graphics card designed for demanding applications and games. With a memory capacity of 16 gigabytes of GDDR7 and an impressive number of 4608 shaders, it delivers outstanding graphics performance. The card supports a maximum video resolution of 7680 x 4320 pixels, making it ideal for high-resolution displays and multi-monitor setups. Thanks to the PCIe 5.0 interface and support for DirectX 12 and OpenGL 4.6, it is future-proof and ready for the latest games and applications. The RTX 5060 Ti is equipped with three fans that ensure efficient cooling and has a maximum power consumption of 135 watts, requiring a recommended system power of 650 watts. This graphics card is therefore an excellent choice for anyone seeking high performance and versatility in their system.
Max. connected monitors | 4x |
Max. Video resolution | 7680 x 4320 pixels |
Graphics card model | GeForce RTX 5060 Ti |
Number of shaders | 4608x |
Video memory clock | 28 GHz |
Power consumption | 135 W |
Length | 28.10 cm |
Item number | 60018555 |
Manufacturer | Gigabyte |
Category | Graphics card |
Manufacturer no. | GV-N506TEAGLEMAX OC-16GD |
Release date | 12.8.2025 |
External links |
Max. connected monitors | 4x |
PCI Express version | PCIe 5.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2 slots |
LED colour | without LED |
Housing compatibility | NVIDIA SFF-Ready |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 5060 Ti |
Clock frequency | 2407 MHz |
Number of shaders | 4608x |
Video memory type | GDDR7 |
Storage capacity | 16 GB |
Video memory clock | 28 GHz |
Memory Interface | 128 bits |
Memory Bandwidth | 448 GB/s |
Number of fans | 3x |
DirectX version | 12 |
OpenGL version | 4.6 |
GPU microarchitecture | NVIDIA Blackwell |
GPU manufacturer technology | NVIDIA ACE, NVIDIA DLSS 4, NVIDIA Encoder, NVIDIA G-Sync, NVIDIA Reflex 2, NVIDIA Studio |

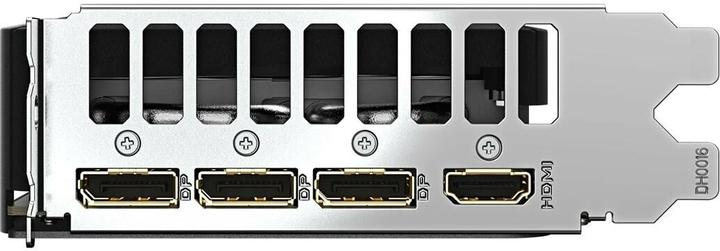

Video connections | DisplayPort (3x), HDMI (1x) |
HDMI version | 2.1b |
DisplayPort version | 2.1b |
Power consumption | 135 W |
Min. recommended system performance | 650 W |
Power connectors | 8-pin PCI-E |
Country of origin | Taiwan |
CO₂ emissions | 425,47 kg |
Climate contribution | EUR 10,58 |
Length | 28.10 cm |
Width | 11.50 cm |
Height | 4 cm |
Product Safety |
Length | 36.50 cm |
Width | 19 cm |
Height | 8 cm |
Weight | 1.13 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Galaxus
The name Windforce 2 says it all for Gigabyte's RTX 5060 Ti 8G with its two fans. Under full load, the two fans had to work audibly, but kept the chip and memory on the record-breakingly short board of just 10 centimetres at a reliable temperature. Officially, the RTX 5060 Ti is allowed to draw 180 watts, but Gigabyte adds a shot of reserve under full load...
