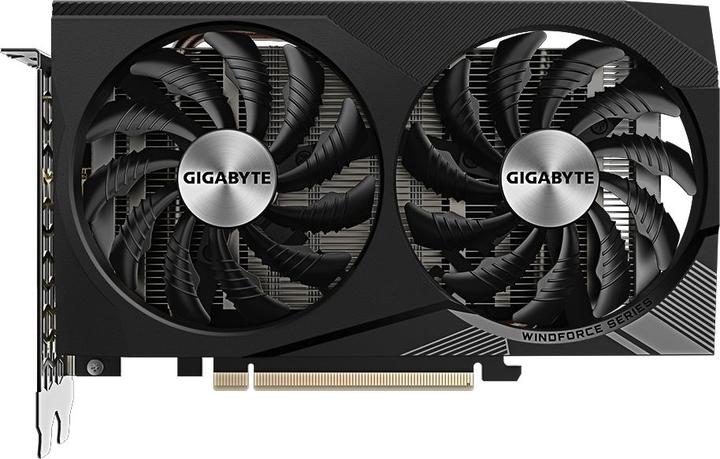

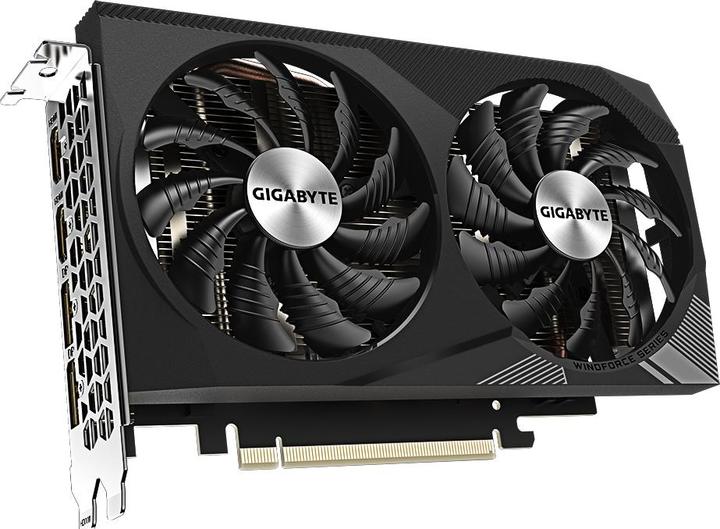

The WINDFORCE cooling system features two 90mm fans with unique blades that make direct contact with the GPU. Alternately rotating and active 3D fans work together to provide highly efficient heat dissipation. They reduce turbulence from neighboring fans and increase air pressure. GIGABYTE rotates the adjacent fans in the opposite direction, ensuring that the airflow direction between the two fans is the same, which reduces turbulence and increases airflow pressure.
The airflow is divided by the triangular fan edge and evenly directed through the 3D strip curve on the fan surface, effectively improving airflow. The 3D active fan offers semi-passive cooling, and the fans remain off when the GPU is under low load or low power during gaming. This allows gamers to enjoy gameplay in complete silence when the system is idle.
Max. connected monitors | 4x |
Max. video resolution | 7680 x 4320 pixels |
Graphics card model | GeForce RTX 3050 |
Number of shaders | 2560x |
Video memory clock | 14 GHz |
Power consumption | 130 W |
Length | 19.81 cm |
Item number | 40058218 |
Manufacturer | Gigabyte |
Category | Graphics card |
Manufacturer no. | GV-N3050WF2OCV2-8GD |
Release date | 14.11.2023 |
External links |
Max. connected monitors | 4x |
Max. video resolution | 7680 x 4320 pixels |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 3050 |
Clock frequency | 1792 MHz |
Boost frequency | 1792 MHz |
Number of shaders | 2560x |
Video memory type | GDDR6 |
Storage capacity | 8 GB |
Video memory clock | 14 GHz |
Memory Interface | 128 bits |
Number of fans | 2x |
DirectX version | 12 |
OpenGL version | 4.6 |
GPU microarchitecture | NVIDIA Ampere |
GPU manufacturer technology | NVIDIA G-Sync |

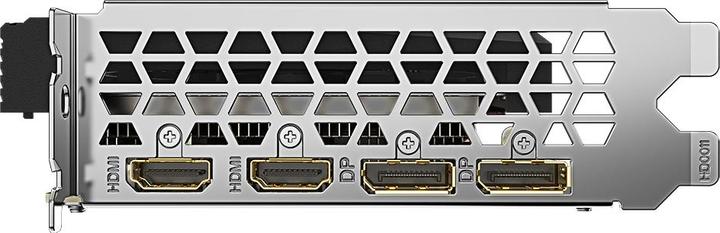

Video connections | DisplayPort (2x), HDMI (2x) |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Power consumption | 130 W |
Min. recommended system performance | 450 W |
Power connectors | 8-pin PCI-E |
CO₂ emissions | 17,81 kg |
Climate contribution | EUR 0,44 |
Length | 19.81 cm |
Width | 12.06 cm |
Height | 3.90 cm |
Product Safety |
Length | 30 cm |
Width | 21 cm |
Height | 5 cm |
Weight | 700 g |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Galaxus
Gigabyte's Gaming OC needs a lot of space in the case for its three 75-millimetre fans. At 28.4 centimetres, it is the longest card in the test, but it gets by with two slots and, at 11.6 centimetres high, barely protrudes above the slot bezel. In addition to two DisplayPorts, two HDMI outputs are screwed onto it...
