Gigabyte Z690 Ud

LGA 1700, Intel Z690 (DDR5), ATX
8Ratings
BrandMore from Gigabyte
Currently out of stock
Free shipping starting at 30,–

Product details

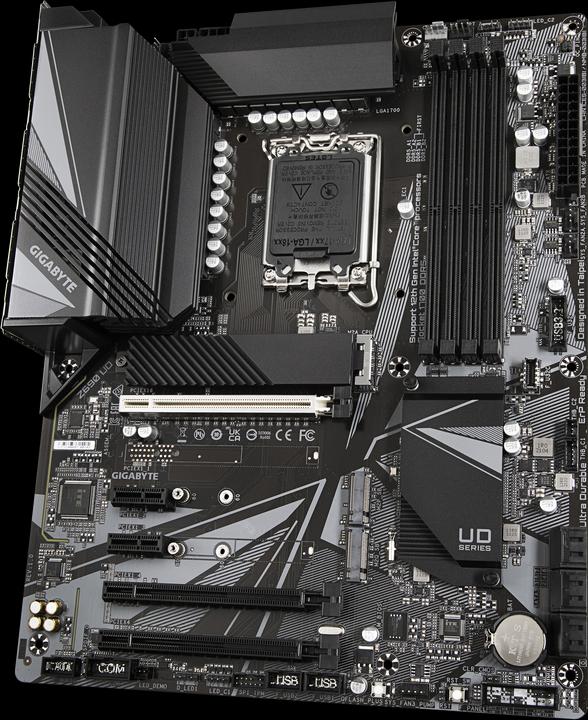

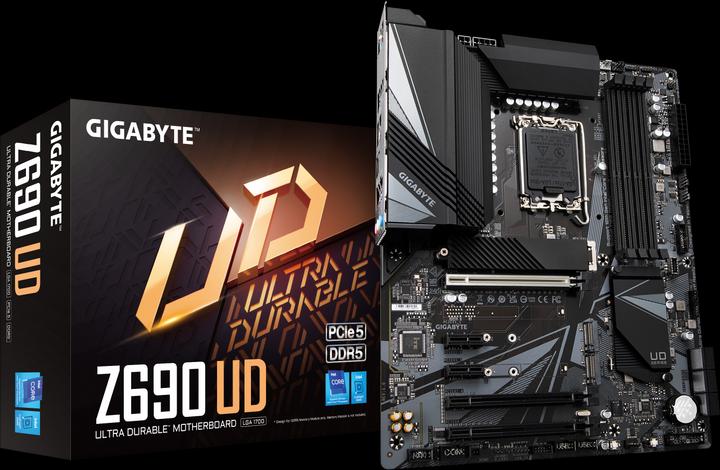

The GIGABYTE Z690 UD (rev. 1.0) is a powerful motherboard designed for the latest 12th generation Intel processors. With the LGA 1700 socket, it supports a variety of processors, including the Intel® Core™ i5, i7, and i9. The motherboard is compatible with DDR5 SDRAM and allows for a maximum RAM capacity of 128 GB, making it ideal for demanding applications and multitasking. Support for various storage drive interfaces such as M.2 and SATA III provides flexible storage options, while the RAID functionality offers additional data security. With a 2.5 Gigabit Ethernet interface, the Z690 UD ensures fast network connections. The ATX form factor allows for easy integration into various PC cases and offers numerous expansion possibilities.

  • Supports DDR5 SDRAM with speeds up to 6000 MHz
  • Compatible with 12th generation Intel® Core™ processors
  • Offers RAID levels 0, 1, 5, and 10 for enhanced data security
  • Integrated 2.5 Gigabit Ethernet interface for high network speed
  • Enables dual-channel memory architecture for improved performance.

Key specifications

Processor family
Core i5, Core i7, Core i9
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (6x)
Mainboard features
Clear CMOS Button
Item number
17276265

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
Z690 UD
Release date
4.11.2021

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z690 (DDR5)
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Core i5, Core i7, Core i9

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Supported memory speed
4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort, HDMI Type A
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Headphones

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x16 (1x), PCI Express x16 (3x)
PCI express version (max.)
5
Number of fan connector
1

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (4x)

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Mainboard

Product dimensions

Length
305 mm
Width
244 mm
Height
335 mm
Weight
1651 g

Package dimensions

Length
34.80 cm
Width
27.80 cm
Height
8.40 cm
Weight
1.64 kg
