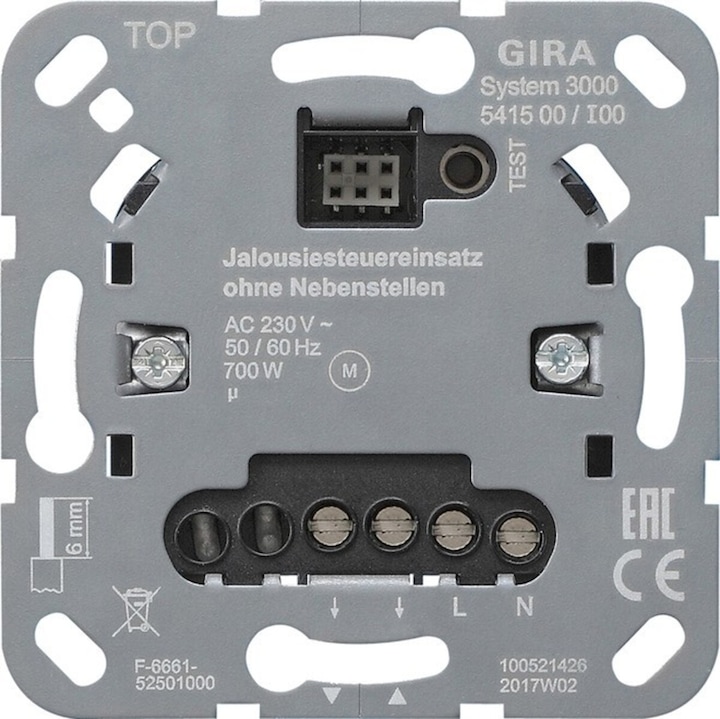

Gira blind control insert 541500

Manufacturer: Gira
Designation: Blind control insert without auxiliary input
Type: 541500
Composition: Basic element
Integrated time switch: No
With brightness sensor connection: No
Suitable for wind sensor: No
Suitable for rain sensor: No
With glass breakage detector connection: No
With Astro programme: No
Extension unit input: No
With memory function: No
Random generator: No
Lock-out protection: No
Mounting type: Flush-mounted
Material: Other
Material quality: Other
Halogen-free: No
Surface protection: Other
Colour: Other
Transparent: No
Suitable for protection class (IP): IP20
Max. switching capacity: 1000 W
Rated voltage: 230 V
Switching capacity: 1000 W
Mounting type: Claw/screw mounting
Min. depth of device box: 24 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Further details: System 3000 blind control insert without extension unit input.

Key features:

• Controls electrically operated blinds, roller shutters, and awnings.
• An individual intermediate position can be stored together with an attachment.
• The control of a motor, e.g., to set the end positions, is possible without an attachment.
• Changeover function of the outputs for simplified commissioning from index I01.
• Operation with neutral conductor connection.
• Combination with KNX RF operating top unit 1-gang or 2-gang: Blind actuator 1-gang.
• Sensor channel 1-gang or 2-gang.
• Local control of System 3000 insert possible.
• Radio control of other KNX devices as sensor possible.
• Temperature detection.
• Function selection of the insert: Shutter type selectable, safety function (wind, rain, frost alarm), sun protection function, scene function, locking function.

EAN: 4010337027416.
