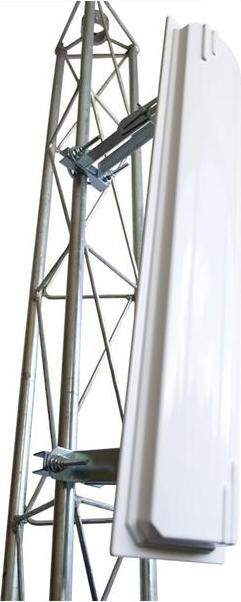

IT ELITE SEC24015H - 2.4 GHz, 15 dBi Outdoor Sector Antenna

The sector antenna operates in the 2.4 GHz band with a gain of 15 dBi and horizontal polarization. Due to its reduced side lobes, the antenna provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. An increase in data throughput or a change in channel does not disrupt the connection.

It is perfectly suited for use in challenging weather conditions, as the corrosion resistance of the materials allows for operation in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

Key Features:

• 15 dBi sector gain
• Special weatherproof outdoor housing
• Highest protection class IP 66
• High-quality construction
• Low side lobes
• Horizontal polarization
• Robust mounting elements
• Easy alignment
• Designed for operation in any weather

Applications:

• 2.4 GHz band Wireless LAN
• IEEE 802.11b/g WLAN systems
• Point-to-point applications

Electrical Properties:

• Frequency: 2.4 – 2.5 GHz
• Gain: 15 dBi
• Polarization: horizontal
• Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
• Vertical beamwidth: 12°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 35 dB

Mechanical Properties:

• Technology: Microstrip
• Antenna connector: N-jack
• Dimensions: 580 x 125 x 50 mm
• Weight: 1.5 kg
• Radome material: UV-resistant
• Color: white
• Construction: All-weather operation.
