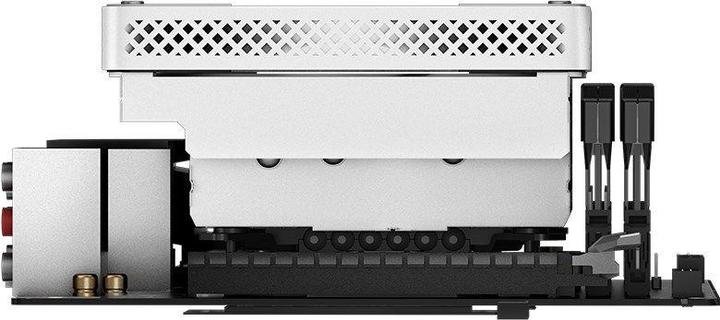

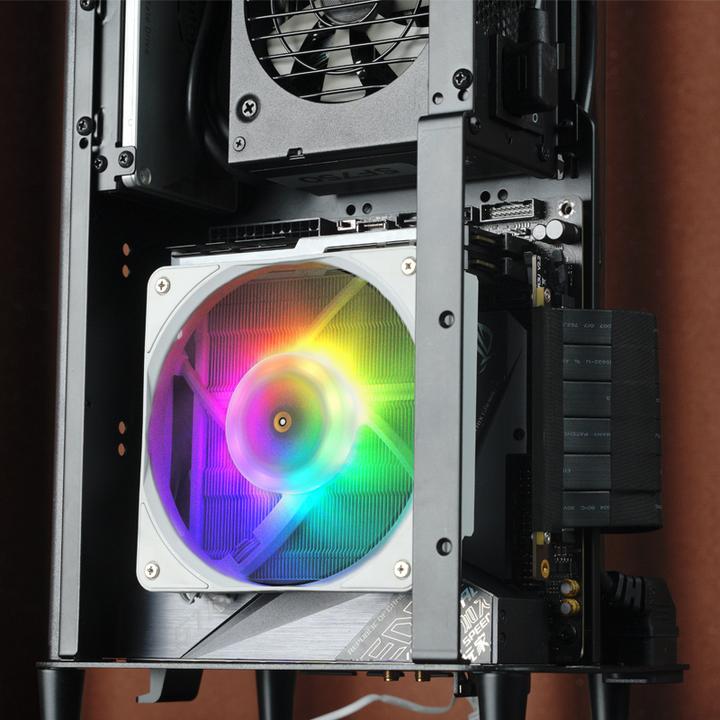

The Jonsbo HX6200D CPU cooler is a compact and powerful cooler, ideal for use in systems with limited space. With an elegant low-profile design in white and a 120mm aRGB PWM fan that reaches a maximum speed of 1,800 RPM, this cooler provides efficient cooling for CPUs with a Thermal Design Power (TDP) of up to 200 W. The six copper heat pipes ensure effective heat dissipation and contribute to the stability and longevity of the system. The cooler is compatible with a variety of Intel and AMD processor sockets, making it a flexible choice for different builds. Additionally, a high-quality thermal paste from Thermal Grizzly is included to facilitate installation and optimize cooling performance. Thus, the Jonsbo HX6200D is an excellent choice for those who value performance and aesthetics.
Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700 |
Diameter | 120 mm |
Number of fans | 1x |
Max. TDP | 200 W |
Airflow | 105.33 m³/h |
power connector | 4-pin |
Height (with fan) | 63 mm |
Item number | 19619600 |
Manufacturer | Jonsbo |
Category | CPU coolers |
Manufacturer no. | HX6200D White |
Release date | 1.3.2022 |
External links |
Colour | White |
Exact colour description | White |
CPU cooler design | Single Tower |
Fan type | Top-Down Cooler |
Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700 |
Supported fan sizes | 120mm |
Number of heatpipes | 6 |
Diameter heat pipe | 6 mm |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Number of fans | 1x |
Max. Speed | 1800 RPM |
Max. TDP | 200 W |
Airflow | 105.33 m³/h |
Static pressure | 19.61 Pa |
Max. noise level | 29.70 dB |
LED colour | RGB |
power connector | 4-pin |
Voltage | 12 V |
Scope of delivery | 1x 120 mm |
Country of origin | China |
CO₂ emissions | 79,11 kg |
Climate contribution | EUR 1,96 |
Width (with fan) | 120 mm |
Length (with fan) | 120 mm |
Height (with fan) | 63 mm |
Weight | 500 g |
Product Safety |
Length | 17 cm |
Width | 17 cm |
Height | 13 cm |
Weight | 750 g |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: GalaxusThe Jonsbo HX6200D offers a very good overall package of workmanship, cooling performance, appearance and compatibility. With the low height of 63 millimetres and the 120 mm fan, it is almost unique on the market. There are only slight deductions for the mounting system.
