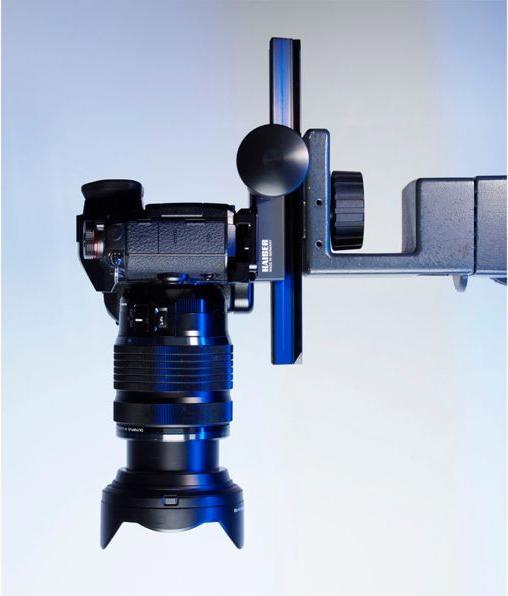

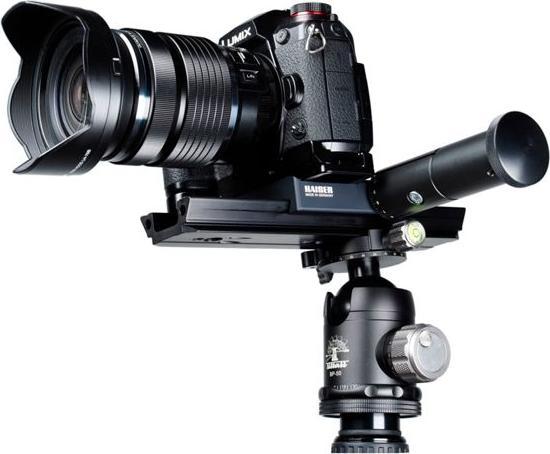

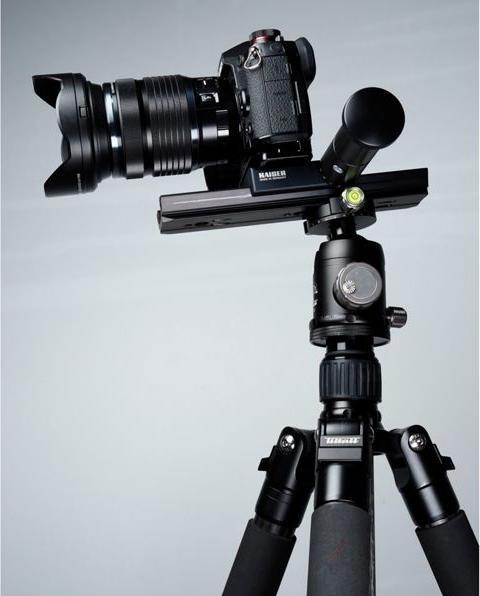

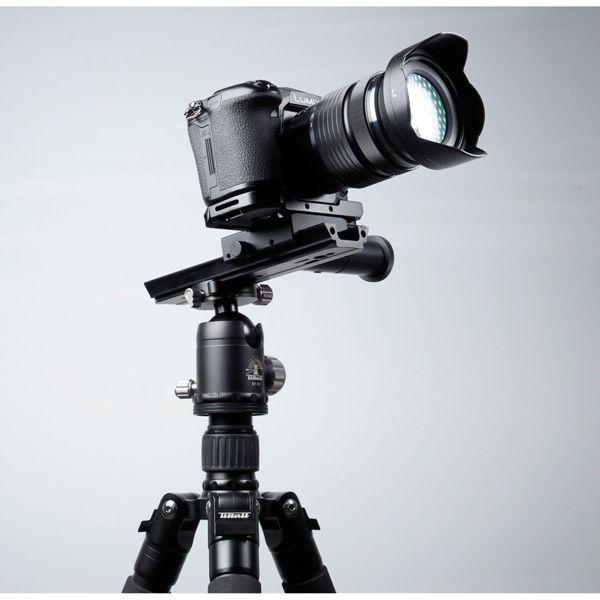

Kaiser macro adjustment slide is a professional adjustment slide designed for precise focusing in macro, stereo, repro, and panorama photography. It can be used on repro tripods as well as on camera tripods and tripod heads. The slide features quick coupling (Arca-Swiss compatible) and a fine adjustment handle.

Technical data:

• Adjustment travel: 125 mm
• Dimensions: 200 x 100 x 33 mm
• Weight: 412 g (without quick release plate)

Fine adjustment handle:

• Length: 111 mm
• Weight: 121 g

More info:

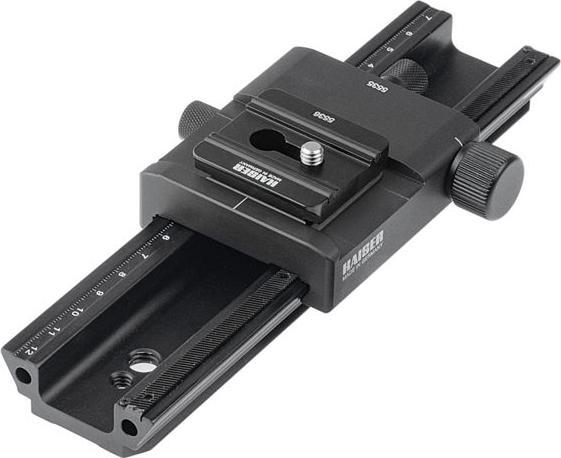

• Guide rail with three tripod threads (1/4" and 3/8") and dovetail guide (Arca-Swiss compatible) for mounting in suitable dovetail clamps. Made from high-quality aluminium profile.
• Bevel toothed precision rack for exact guidance.
• Millimetre scale for reproducible settings.
• Runner with adjustment screw, quick release, and locking screw.
• Adjustment travel: 15 mm with one turn of the adjustment screw.
• Quick release with dovetail clamp (Arca-Swiss compatible) and clamping screw.
• Square quick release plate, which can also be used rotated by 90°. Camera connection thread: 1/4".

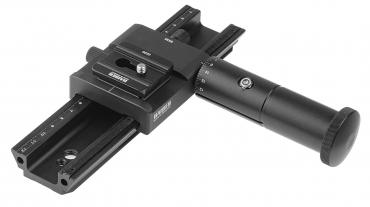

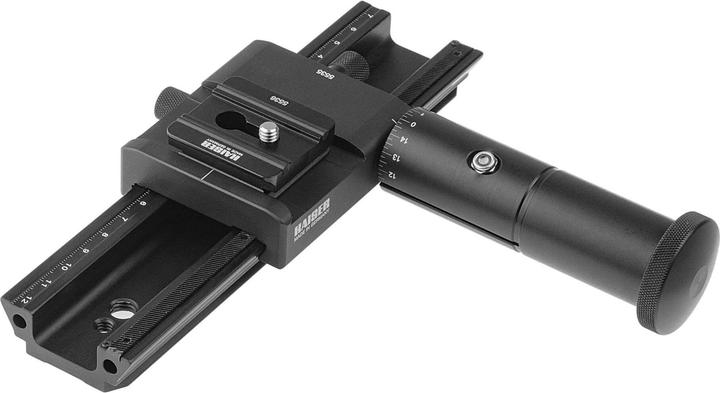

• Fine adjustment handle for particularly sensitive adjustment, attachable to the adjustment screw of the adjustment slide, with a scale of 1/4 mm adjustment travel per graduation mark.
• Allen key for readjusting the clamping effect of the fine adjustment handle and for the camera screw in the quick-release plate.

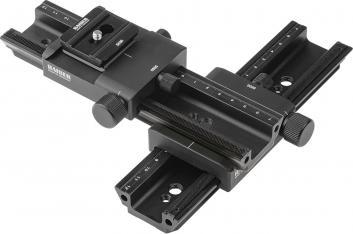

• Two adjustment slides can be combined to form a cross slide.

Scope of delivery: Macro adjustment slide, quick-release plate, fine adjustment handle, 4 mm Allen key.
