Cascadable single-cable multi-switch for distributing satellite IF signals (four satellite levels, including HDTV) and terrestrial signals over a single cable to up to twelve receivers. There are no limitations on the program variety - the complete program offerings of a satellite are transmitted. The selected transponder is provided by the multi-switch at a fixed frequency (user band), controlled by the receiver using a DiSEqC™ command set according to EN 50494. The multi-switches support the extended single-cable command set SCD2 according to EN 50607. With the extended command set EN 50607, all user bands can be addressed, while the standard EN 50494 only allows for user bands 1-8. Reception of the terrestrial range is also possible with the satellite receiver turned off. Each receiver is permanently assigned a participant frequency (user band) (a twin receiver requires two participant frequencies). PIN code: protects the participant frequency from access by another participant. This allows for installation across multiple apartments. The integrated AGC (Automatic Gain Control) ensures a constant output level of the satellite IF signals. The single-cable multi-switch EXE 2512 and other pass-through multi-switches, such as EXE 259, EXR 2554, EXR 2558, and EXR 2542, can be combined as desired. Up to eight multi-switches can be cascaded. For indoor installation.

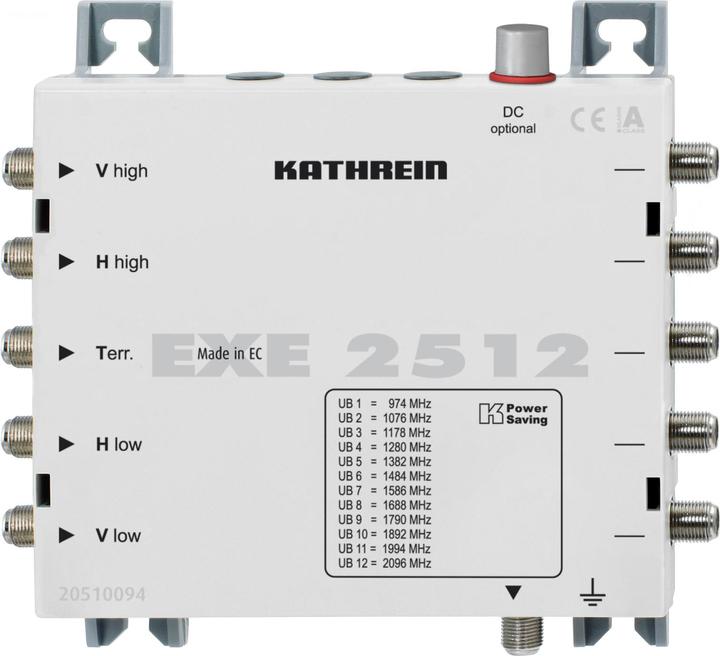

EXE 2512: Pass-through multi-switch for expanding the system with a single-cable connection for twelve receivers. Kathrein Power-Saving: As soon as no receiver is active, a signal is sent to the end multi-switch via the trunk "vertical low," which then switches off the LNB power supply. Optional supply with NCF 18 is possible. Thanks to the power-saving concept, the multi-switch consumes no power from the NCF 18 when no receiver is turned on.
