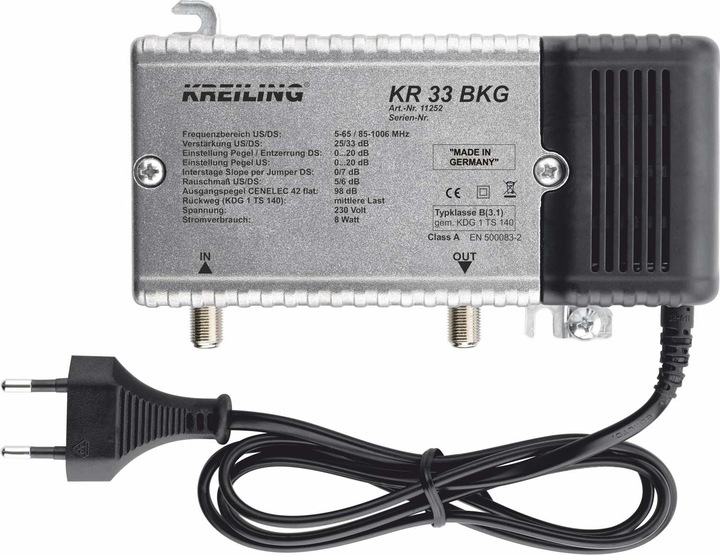

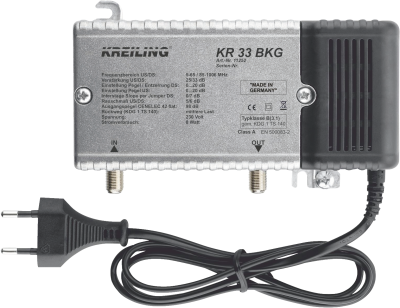

The BK amplifier KR 33 BKG from Kreiling is a powerful broadband amplifier designed for use in cable television systems. With a gain of 33 dB in the frequency range of 85 to 1,006 MHz and 25 dB in the return path from 5 to 65 MHz, this amplifier provides reliable signal amplification for various applications. The amplifier features an integrated level controller that allows for gain adjustment from 0.00 to 20 dB. Additionally, it includes built-in slope compensation, ensuring equalization of up to 6 dB. The device is designed for mains operation and is characterized by low energy consumption of only 3 watts, resulting in minimal heat generation. The BK amplifier is equipped with riveted F-connectors and a grounding terminal, enhancing installation and safety. With its robust cast housing, the amplifier is suitable for both indoor and outdoor use and meets the requirements for high maximum output power.

• Energy-efficient switch-mode power supply with low operating consumption
• Integrated slope compensation for improved signal quality
• Active return channel with 25 dB gain
• Robust cast housing for durability
• Made in Germany, ensuring high quality standards.
