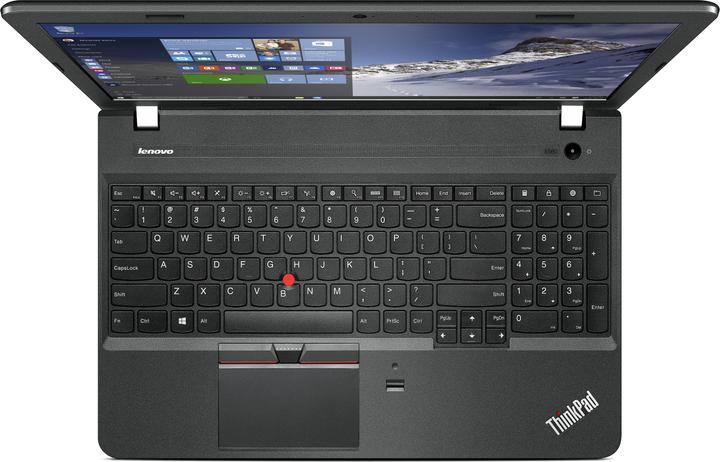

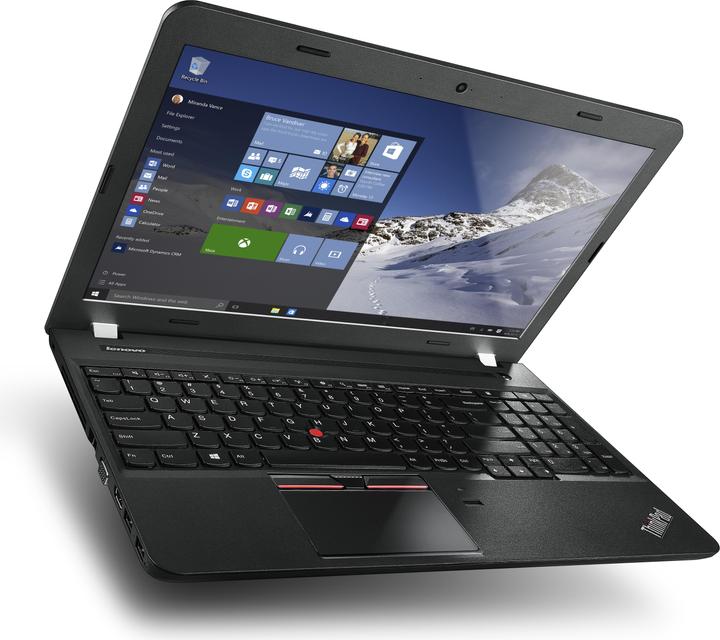

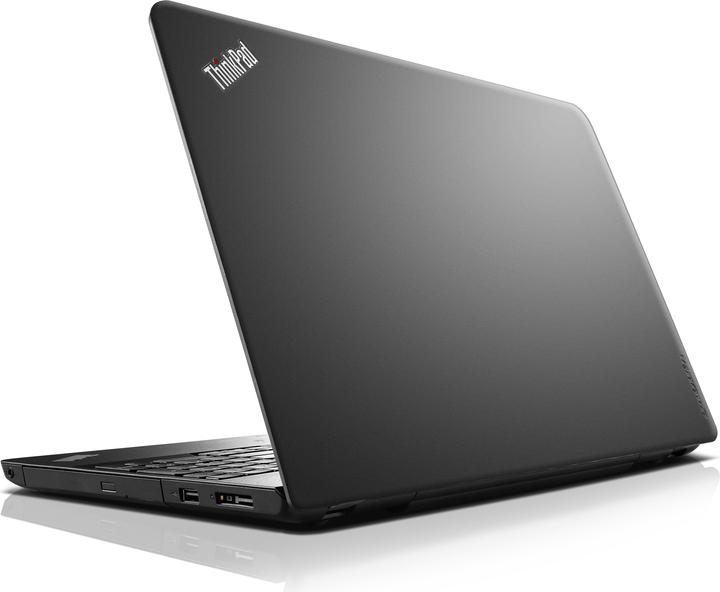

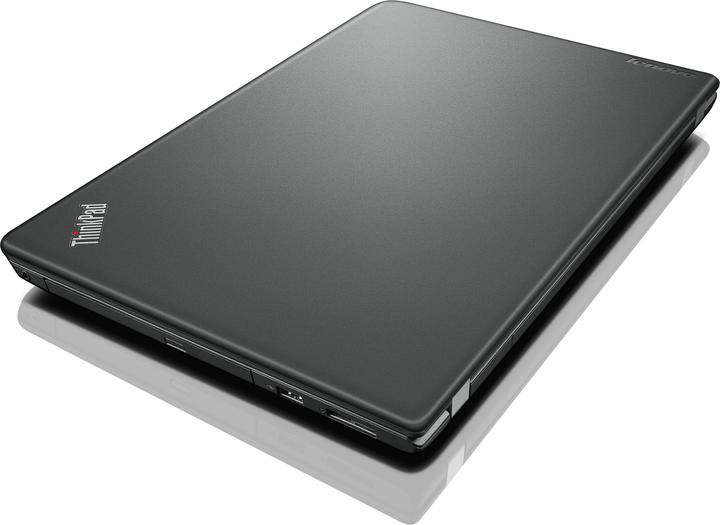

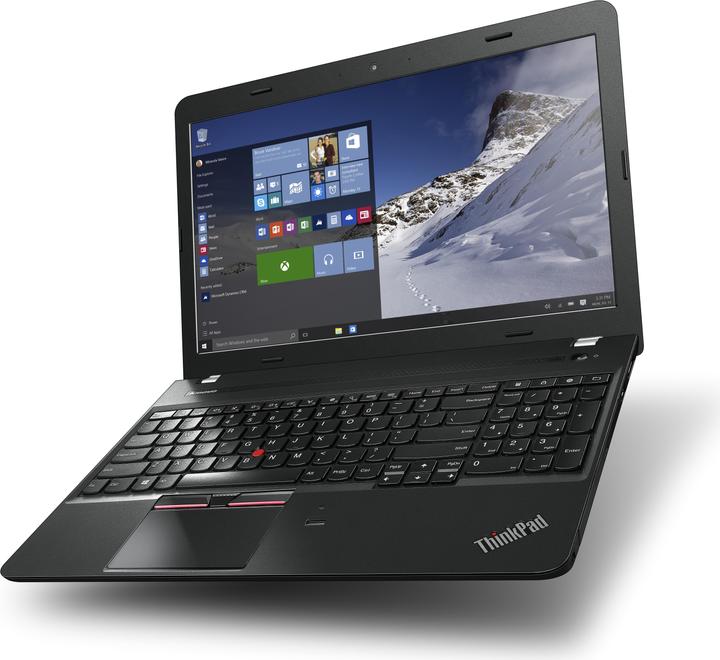

Lenovo ThinkPad E560

15.60", Intel Core i7-6500U, 16 GB, 192 GB, CH
Currently out of stock

Product details

The ThinkPad E560 is ideally suited for individuals who frequently switch between office and fieldwork. With its sixth-generation i7 processor, 16 GB of RAM, and dedicated AMD graphics card, it delivers performance that can rival desktop PCs. A fingerprint scanner protects it from unauthorized access. Thanks to the extra-large touchpad with gesture control, a separate numeric keypad, and a TrackPoint, you can operate the E560 quickly and precisely from anywhere – and it lasts up to 9 hours on battery power.

Whether in the office or on the go, a generous selection of ports keeps you connected at all times. With 1000 Mbps LAN and 802.11ac Wi-Fi, you can navigate any network quickly. Present your work with a projector or connect a second screen – both are easy with an HDMI and a VGA port. Three USB 3.0 ports and a OneLink port are available for your peripherals and docking station. You won't have to miss out on a card reader either.

For mass storage, a 192 GB Solid-State Drive (SSD) provides the necessary space. The main advantage of SSDs is their fast access times and high read and write speeds, which overshadow traditional hard drives – the difference is noticeable right from the moment you boot up the computer. Another benefit is that SSDs contain no moving parts, leading to increased durability since no components wear out mechanically. Additionally, SSDs operate completely silently.

Key specifications

Processor family
Core i7 6th Gen
Memory
16 GB
SSD capacity
192 GB
Operating System Version
Windows 7 Pro / Windows 10 ready
Image resolution
1920 x 1080 pixels
Keyboard layout
Swiss
Graphics card model
Radeon R7 M370
Item number
5659400

General information

Manufacturer
Lenovo
Category
Notebooks
Manufacturer no.
20EV000XMZ
Release date
10.12.2015

Colour

Colour
Black
Exact colour description
Black

Application range

Notebook type
Business laptop

Processor

Processor family
Core i7 6th Gen
Processor type
Intel Core i7-6500U
Clock frequency
2.50 GHz
Max. turbo clock rate
3.10 GHz
Max. TDP
25 W
Number of processor cores
2 -Core
Number of threads
4
Cache
4 MB
Chipset
Intel SoC

Memory

Memory
16 GB
Memory configuration
2 x 8GB
Max. supported memory
16 GB
Memory type
DDR3L-RAM
Memory form factor
SO-DIMM
Storage clock frequency
1600 MHz

Material

Material group
Plastic
Material
ABSAcrylonitrile Butadiene Styrene (ABS)

Onboard graphics properties

Graphics chip (GPU)
Intel HD Graphics
Graphics card model
Radeon R7 M370

Dedicated graphics card properties

Graphics card model
Radeon R7 M370
Dedicated graphics memory
2 GB
Video memory type
GDDR5

Display properties

Display resolution
Full HD
Image resolution
1920 x 1080 pixels
Aspect ratio
16:9
Display functions
Integrated microphone
Display size (inches)
15.60"
Screen surface
Anti-glare
Brightness
250 cd/m²

Data storage overview

Disk type
SSD
Total capacity
192 GB
SSD capacity
192 GB

Optical drive

Optical drive type
DVD writer

Card slots

Memory card type
MMCSDSDHCSDXC

Connections

Video connections
HDMI (1x)
Audio Connections
HDMI (1x)
Network connections
RJ45 (1x)

Operating system

Operating system
Windows
Operating System Version
Windows 7 Pro / Windows 10 ready
Language
EnglishFrenchGermanItalian
Operating system architecture
64-bit

Audio functions

Notebook speaker type
JBL stereo speakersStereo speakers
Number of speakers
2 x
Audio channel
Stereo

Camera properties

Max. Video resolution front camera
1280 x 720 pixels

Safety

Safety
Fingerprint scanner
Password protection Type
Hard diskSupervisorSwitch on

Network

Max. port speed
1 Gbit/s

Wireless transmission

Wireless transmission
BluetoothWi-Fi

Wi-Fi

Wi-Fi controller
Intel Wireless-AC 3165
Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11ac

Battery properties

Battery type
Li-ion
Number of cells
6 Cells
Max. battery life
9 h
Power supply unit strength
65 W

Input device

Keyboard layout
Swiss
Input device
Numeric keypadTouchpadTrackPoint

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Instruction manual

Product dimensions

Height
2.71 cm
Depth
25.50 cm
Width
37.70 cm
Weight
2.45 kg

Package dimensions

Length
49 cm
Width
33.20 cm
Height
9 cm
Weight
7.11 kg
