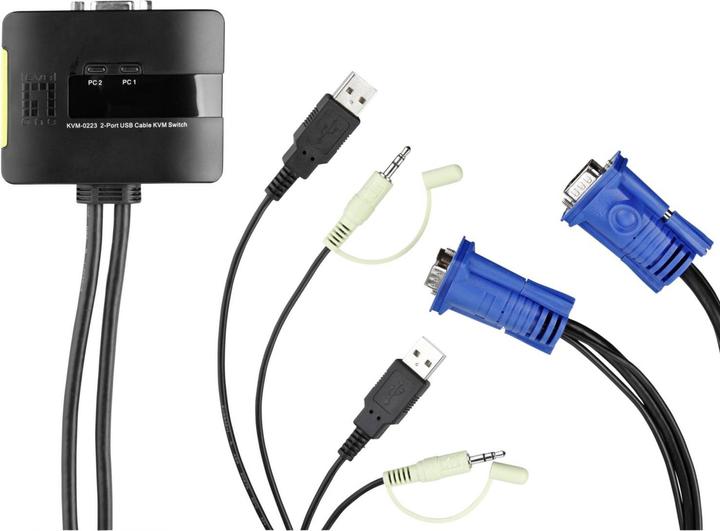

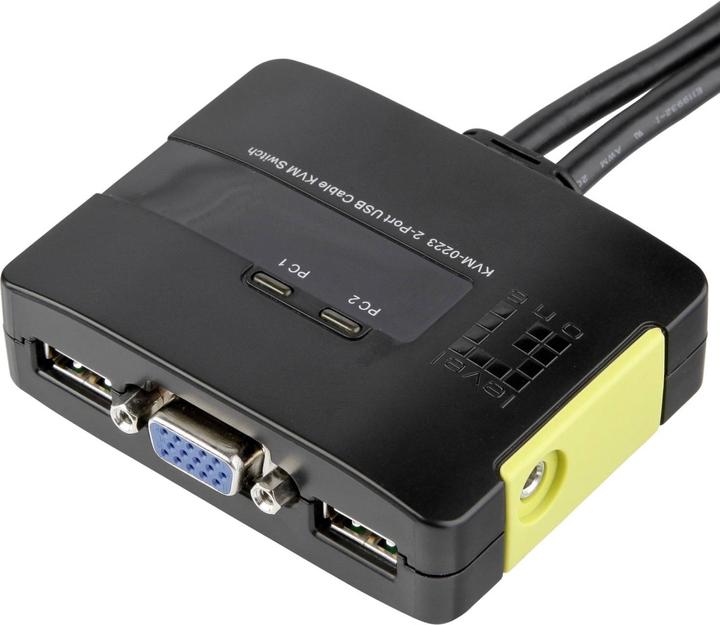

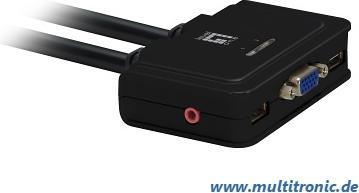

Level One KVM-0223 Cable Switch

The LevelOne KVM-0223 2 Port USB KVM Switch offers easy installation to control two computers with one keyboard, mouse, and monitor. The KVM-0223 supports multi-platform computer systems, allowing control of two computers regardless of the installed operating system. Switching between the two computers can be done with a simple key combination. All necessary cables are already included with the KVM. The USB KVM can be easily connected to the PCs without the need to install additional software or change system configurations. An external power supply is not required.

The 2 Port KVM-223 supports DDC2B and VGA resolutions up to 2048 x 1536 pixels. The switch also supports audio, enabling the audio channels from both systems to be played through a single set of speakers.

Features:

• 2 Port USB KVM Switch for home and office use

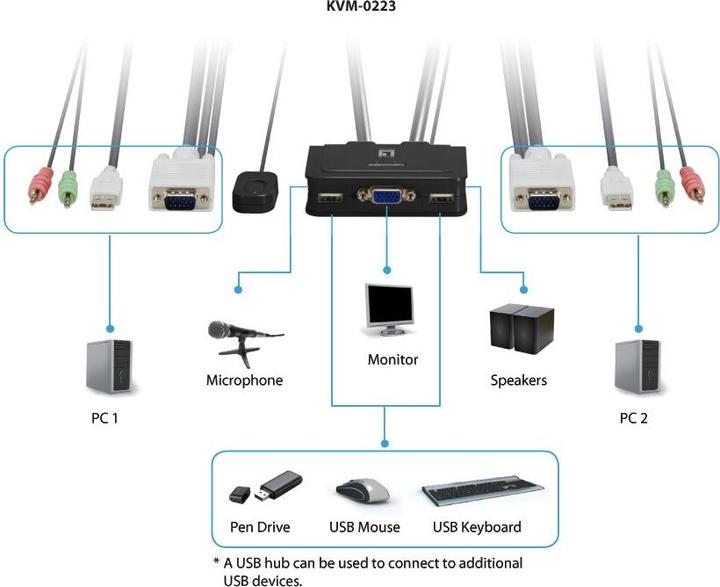

• Connects two computers with one keyboard, mouse, and monitor
• High video quality - DDC2B and up to 2048 x 1536 pixels
• Easy installation without software installation

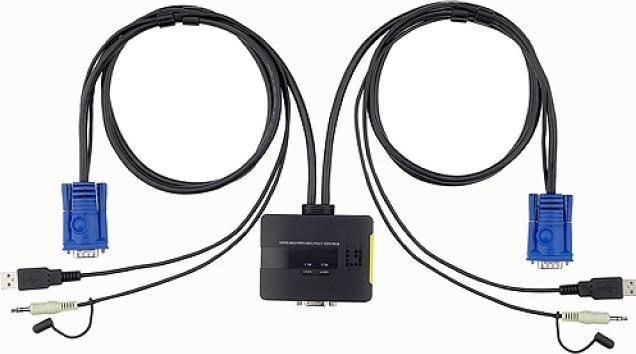

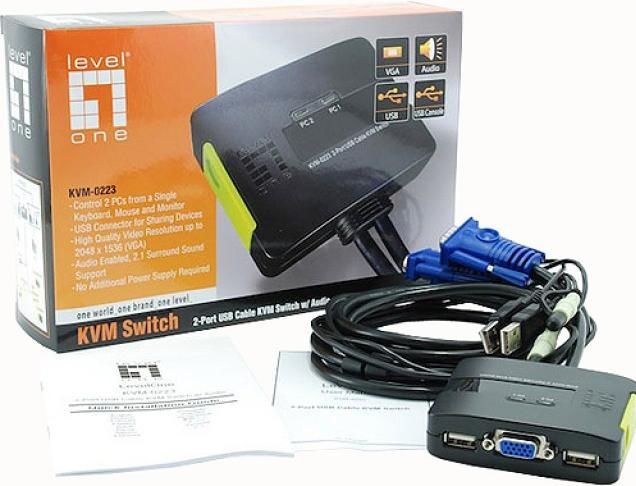

• All cables included
• Speaker and microphone support
• Auto-scanning

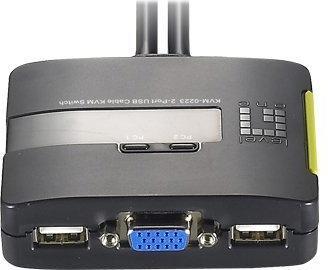

• LED display for status indication
• Hot-key switching

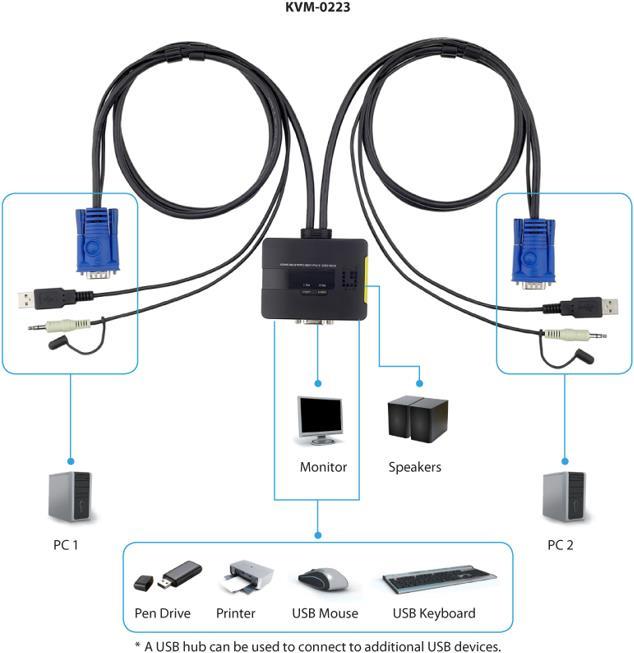

Connections:

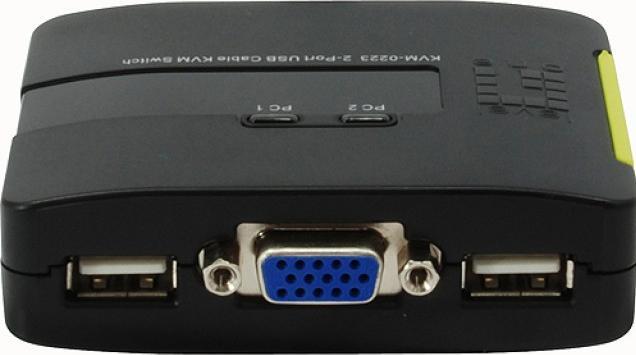

• Console Port Connections
• Keyboard: 1x USB Type A - Female (Black)
• Video: 1x HDB-15 - Female (Blue)
• Mouse: 1x USB Type A - Female (Black)

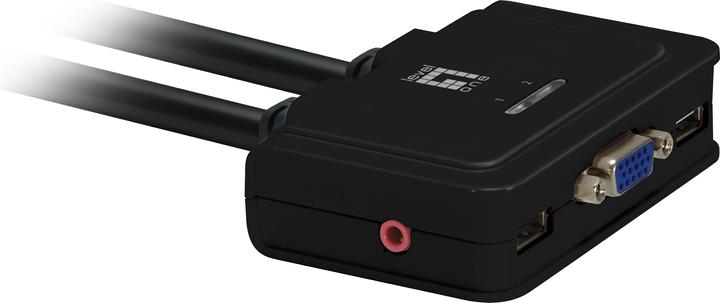

• Speaker: 1x Mini-stereo jack - Female (Green)

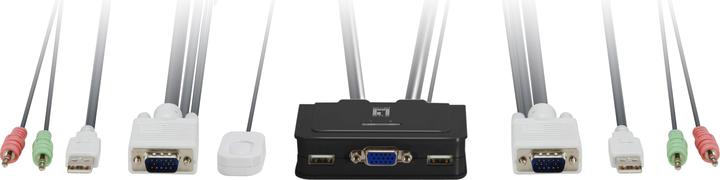

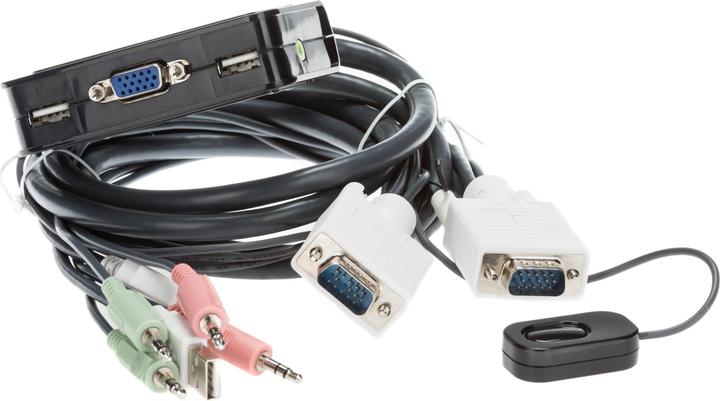

• KVM Port Connections
• Keyboard/Mouse: 2x USB Type A - Male (Black)
• Video: 2x HDB-15 - Male (Blue)
• Speaker: 2x Mini-stereo plug - Male (Green).
