Product details

The 4K Over IP extender system allows for the extension of a 4K video source, such as a PC or set-top box, over a Gigabit IP network. The extender system is controlled remotely via the extended USB interface. This receiver can be connected to a transmitter (not included) to establish a standard point-to-point system with maximum distances of up to 100 m. The transmitter can also connect to multiple receivers, enabling a single device to be controlled by various consoles on the receiver side. Additionally, a video wall can be set up on the same private network using a dedicated Gigabit Ethernet switch that supports 8kB jumbo frames.

In addition to the audio signal embedded in HDMI, there are two additional audio channels (one audio output from the source and one for connecting a microphone on the opposite side) and an optical SPDIF port on the receiver to connect a digital audio device or amplifier.

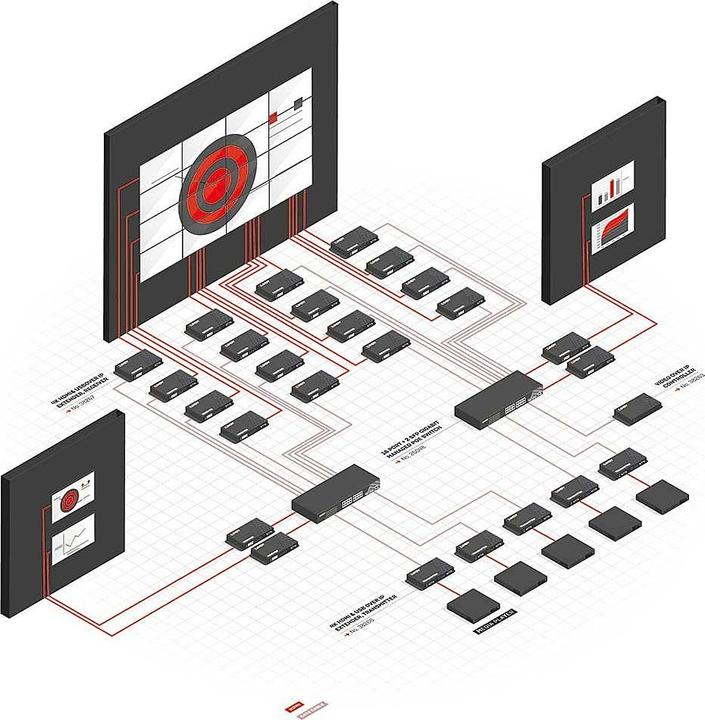

The HDMI Over IP extender system features a convenient bidirectional IR extender system (20-60 kHz), which allows for the extension of remote control signals. This device is a typical solution for security management systems (control rooms or monitoring stations), server remote management (via the KVM control system), or the extension of AV signals over IP for monitoring industrial facilities. Another important application is large video wall installations (up to 16x16 screens) for digital signage and retail environments.

Key specifications

Number of controllable PC's
3 x
Main device port
HDMIRJ45RS-232USB 2.0VGA
Exact USB ports
USB-A 2.0 (4x)
Video connections
HDMI (1x)VGA (1x)
Audio Connections
Digital Audio Out (1x)
Network connections
RJ45 (3x)
Item number
10703168

General information

Manufacturer
Lindy
Category
KVM switches
Manufacturer no.
38267
Release date
8.3.2019
External links

Colour

Colour
Black
Exact colour description
Black

KVM switch properties

Product type
USB switchVideo Switch
Connectable devices (input)
3
Connectable devices (output)
1
Number of controllable PC's
3 x
Max. picture resolution
3840 x 2160 pixels
Cable length
1020 cm
HDMI version
2.2
remote control type
Cable

Connection main unit

Main device port
HDMIRJ45RS-232USB 2.0VGA

Connection to external devices

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x)
Video connections
HDMI (1x)VGA (1x)
Audio Connections
Digital Audio Out (1x)
Network connections
RJ45 (3x)
Data ports
PS/2 (2x)PS/2 (4x)RS-232 (1x)

Scope of delivery

Scope of delivery
IR receiver, IR transmitter

Power supply

Power supply
Electrical connection

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
2.50 cm
Width
23.20 cm
Height
10.80 cm
Weight
670 g

Package dimensions

Length
31.80 cm
Width
26.90 cm
Height
6.70 cm
Weight
1.37 kg
