This advanced HDMI 4K60 switch is able to display up to four sources at the same time on a 4K screen with KVM control, connecting also the USB Type B ports. There are five different multiview modes: single, PIP, PBP, 3xWIN, and 4xWIN. With the USB roaming function, it is possible to gain KVM control of different sources by simply moving the mouse pointer from one window to another.

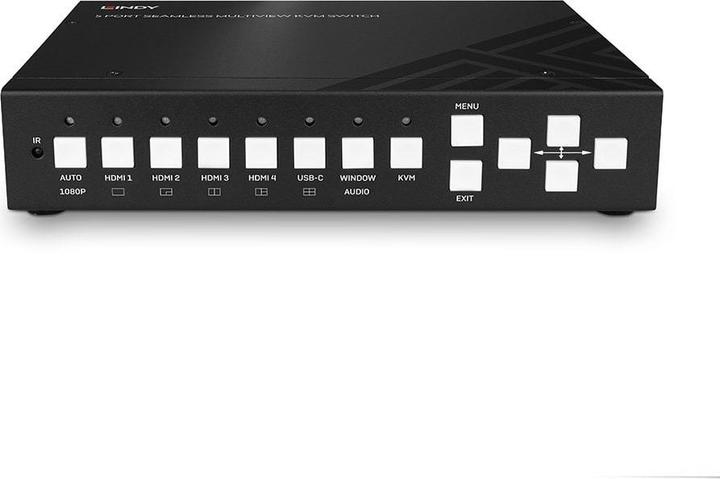

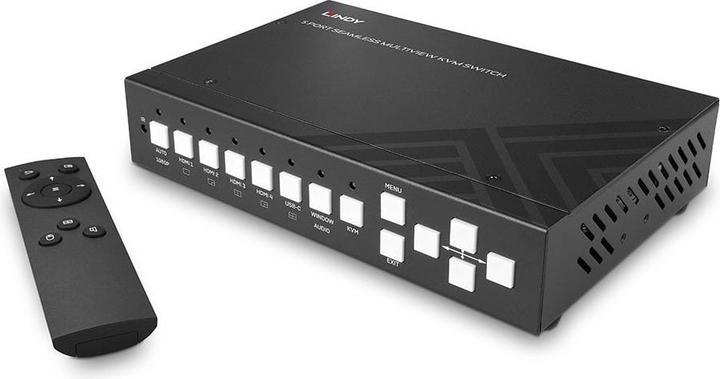

The unit has four HDMI and one USB Type C video inputs, and switching between the sources is seamless, without any black screen or screen freezing. All the features can be managed in various ways, including pushing the buttons on the front panel, using the OSD menu, the included IR remote control, keyboard hotkeys for KVM selection, or via TCP/IP or RS-232 software GUI and commands. These different possibilities and features make this switch perfect for any kind of installation, from AV pro solutions to mission-critical control rooms, in broadcasting, e-sports, and security applications.

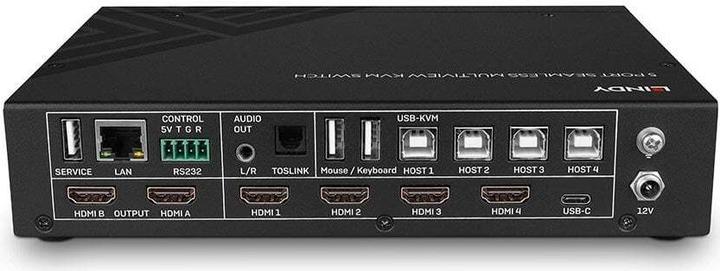

It also provides one additional HDMI mirrored output for local monitoring or for video capture by adding an HDMI to USB video capture device. The 3.5mm analog and TosLink digital optical audio outputs allow for independent audio selection, supporting many audio formats. With LPCM 2.0 format, the volume can be controlled as well.
