ECOCAMP is a universal antenna designed for receiving both analog and digital DVB-T/T2 H.265 HEVC television programs. The advantage of this antenna is its compact size and lightweight, allowing it to be mounted in various locations (roof, balcony, window) as well as on moving objects (yacht, car). The hermetic casing enables operation under all climatic conditions. A significant benefit of the ECOCAMP antenna is its omnidirectional (horizontal) radiation pattern, which means it does not need to be specifically aimed at the transmitter. The antenna is powered via a coaxial cable that delivers an amplified signal to the receiver. By using low-loss passive signal splitters, multiple receivers can be connected simultaneously. For connections, use a coaxial cable with a characteristic impedance of 75 ohms and an outer diameter of 6 mm.

Specifications:

• Frequency range: 174-230 MHz, 470-790 MHz
• Gain: 20-33 dB, max 44 dB
• Output: 75 Ω
• Orientation: 360°
• Polarization: horizontal
• Power supply: USB 5V 30mA DC
• Diameter: 26.5 cm

Set includes:

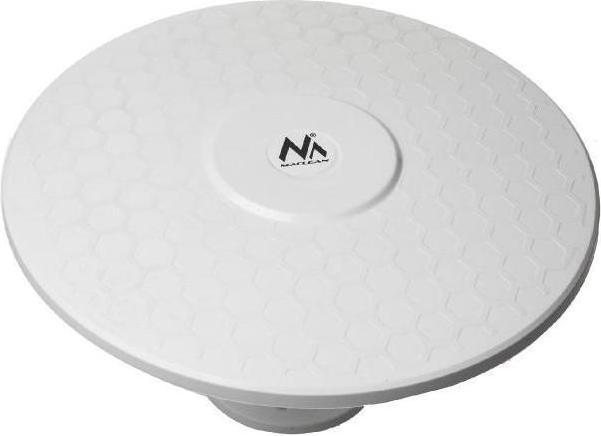

• Active omnidirectional antenna DVB-T/T2 H.265 HEVC Maclean MCTV-947

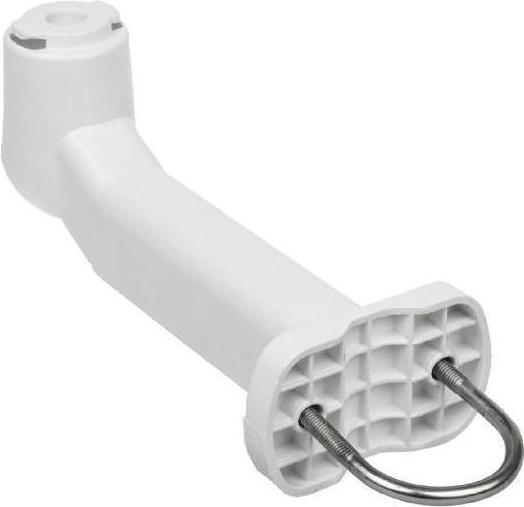

• Handle
• Plug

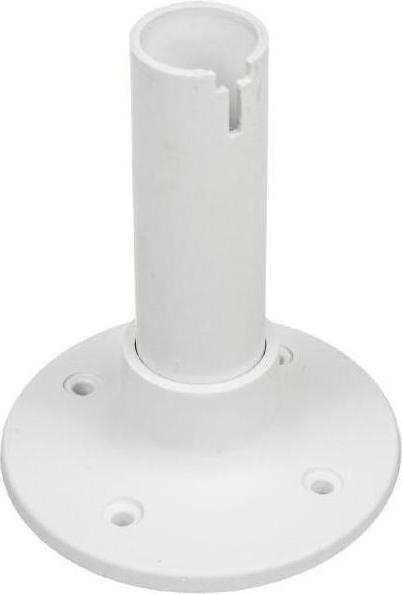

• Stand
• 75 Ohm antenna cable, 5 m long, with F-plug
• USB power adapter with separation bridge
• Clamp/clip
• Rubber pad
• Mounting instructions
• Manufacturer packaging

Features:

• Universal antenna for receiving analog and digital DVB-T/T2 H.265 HEVC TV programs
• Compact dimensions and weight
• Hermetic casing allows use in all climatic conditions
• Omnidirectional (horizontal) radiation pattern
• Built-in amplifier
• Can be mounted in various locations (roof, balcony, window), also on moving objects (yacht, car).
