The laboratory power supply, which can be remotely controlled via voltage/resistance input and a USB interface, delivers up to 60 V DC with a maximum output current of 10 A. The device itself can store and recall up to 3 presets for frequently needed current/voltage settings. Through the remote control input, current and voltage can be adjusted remotely, and the output can be switched on or off. The device can also be remotely programmed and controlled from a PC via the USB interface.

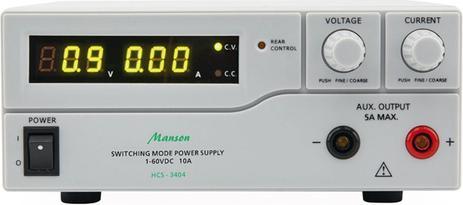

Output voltage ranges from 1 to 60 V DC, and output current ranges from 0 to 10 A. It operates in constant voltage/constant current mode with 3 freely programmable memory slots for current/voltage settings, factory set to 5-13.8-55 V and maximum current. Simultaneous display of voltage, current, and status is provided through bright LED indicators. The remote control input allows for current/voltage adjustments and switching of the output (0–5 V or potentiometer).

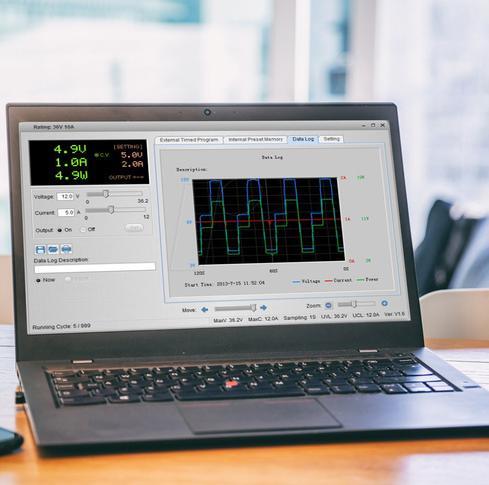

Using USB and the supplied PC software, up to 20 presets for current, voltage, time intervals (up to 100 min), and cycles (max. 999) can be programmed. It features an integrated temperature-controlled fan, a self-test function, and a galvanically isolated output with dual connections at the front and back. The power supply includes a highly efficient switch-mode power supply with active PFC, overload protection, overvoltage protection, over-temperature protection, and short-circuit protection.
