MDT technologies Glastaster II Light 2-fold BE-GTL20W.01

Manufacturer: MDT technologies
Designation: Glastaster II Light 2-fold RGBW, white, neutral
Type: BE-GTL20W.01
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Activation Points: 4
Number of Buttons: 2
Power Consumption: 0.3 W
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Glass
Material Quality: other
Surface Protection: other
Surface Finish: glossy
Color: white
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm

MDT technologies Glastaster II Light 2-fold BE-GTL20W.01: additional details

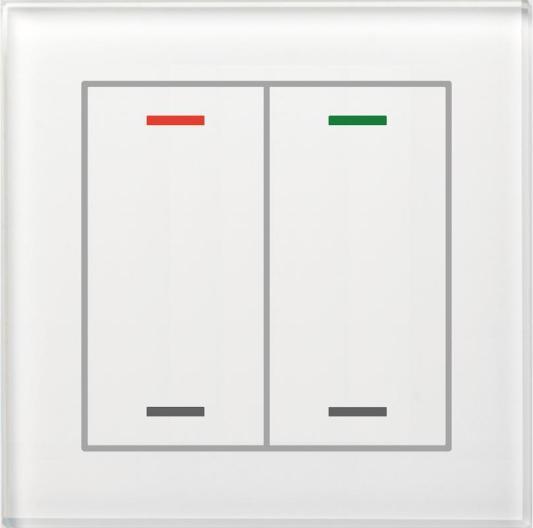

KNX Glastaster II Light 2-fold, RGBW, White, Neutral.
Neutral version with 2 pairs of buttons / 4 sensor surfaces. Extensive application. The buttons can be freely configured as pairs or single buttons. Single and double button operation for switching, dimming, blinds, values. Switching between up to four values or scenes. Short/Long button press with 2 objects. Multi-tap function sends up to 4 values to the same or different objects. Innovative group control with long/extra long button press. Patched function with an additional switching channel. Four RGBW status LEDs. LED brightness controllable via day/night or brightness object. 4 logic blocks. Installation in switch box with supplied mounting ring. Dimensions (H x W): 92 x 92 mm. Integrated bus coupler. EAN: 4251916110451.
