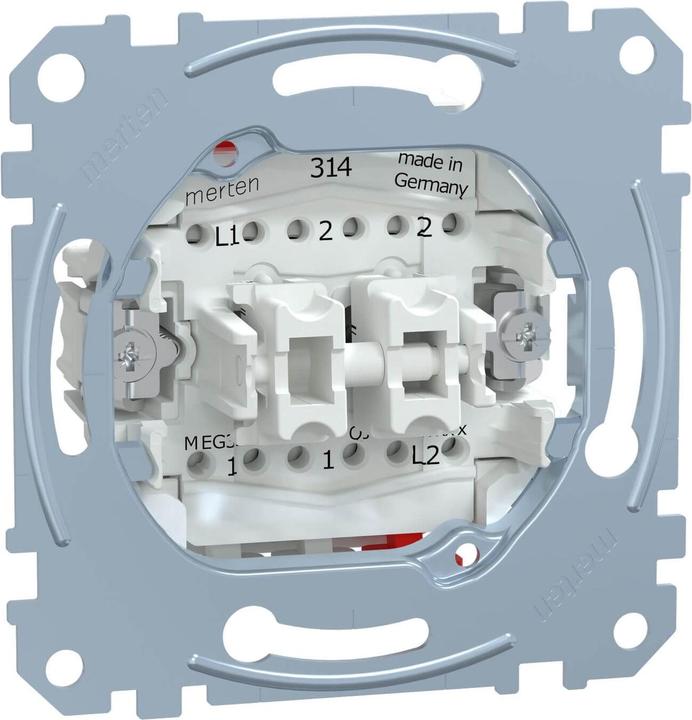

Merten changeover switch/button MEG3128-0000

Manufacturer: Merten
Designation: Changeover switch/button
Rated current: 10 A
Rated voltage: 250 V AC
Type: MEG3128-0000
Type of switching: Changeover switch and changeover button
Type of operation: Rocker/button
Assembly: Flush-mounted insert
Pushbutton switch: No
Number of operating rockers: 2
Type of mounting: Flush-mounted
Type of fastening: Claw/screw fastening
With mounting plate: Yes
Material: Metal/plastic
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Text field/inscription area: No
Illumination: Without illumination
Suitable for protection class (IP): IP20
Switching current for fluorescent lamps: 10 AX
Feedback contact: No
Connection type: Plug-in terminal
Washing machine switch: No
Device width: 73 mm
Device height: 73 mm
Device depth: 37 mm
Installation depth: 28 mm
Min. device box depth: 40 mm

The left rocker is designed as a toggle switch 10 AX, AC 250 V, and the right rocker as a button 10 A, AC 250 V.

Features:

• Front measuring and test contacts, accessible without switch disassembly
• Quick-thread screws for claw mounting
• Recessed claws with return spring
• Bright zinc plated support ring insulated to claw
• With claw and screw fixing
• With plug-in terminals
• To be completed with double rockers for switches/buttons system M
• EAN: 4042811144883.
