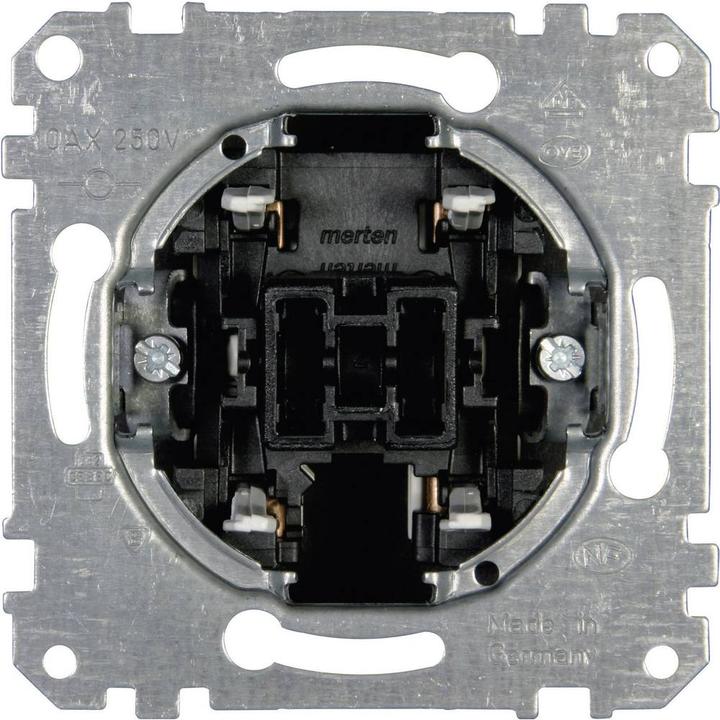

Merten Cross Switch Insert MEG3117-0000

Manufacturer: Merten
Description: Cross switch insert 1-pole 10AX 250V AC
Type: MEG3117-0000
Switching type: Cross switch, 1-pole
Operation type: Rocker/button
Assembly: Flush-mounted insert
Push button: no
Number of operating rockers: 1
Mounting type: Flush-mounted
Mounting method: Claw/screw fastening
With mounting plate: yes
Material: Metal/plastic
Material quality: other
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Text field/labeling area: no
Lighting: without lighting
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Connection type: Plug terminal
Heating switch: no
Washing machine switch: no
Device width: 73 mm
Device height: 73 mm
Device depth: 37 mm
Installation depth: 28 mm
Min. depth of device box: 40 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Features:

• Front-side retrofitting of QuickFlex lighting modules without switch disassembly.
• Front-side measuring and testing contacts, accessible without switch disassembly.
• Quick-thread screws for claw fastening.
• Sunken claws with return spring.
• High-gloss galvanized support ring insulated to the claw.
• With claw and screw fastening.
• With plug terminals.
• To be completed with rockers for switch/button System M.
• Cradle to Cradle CertifiedTM.
• EAN: 4042811144395.
