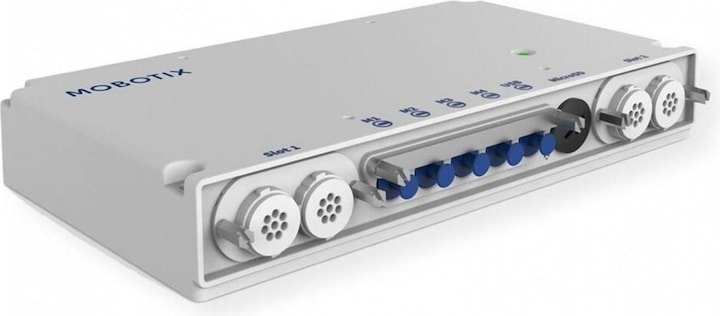

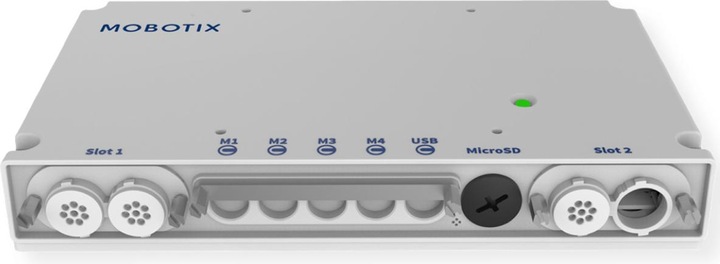

Mobotix MX-S74A - Camera module - indoor, outdoor

3840 x 2160 pixels
Price in EUR including VAT
Delivered between Sat, 19.7. and Thu, 31.7.
free shipping

Product details

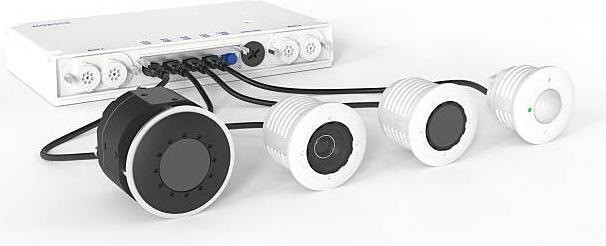

With up to four modules, the S74 is more flexible than any previous MOBOTIX IoT video system. The camera itself operates discreetly with its covertly mounted housing, with only the modules visible. Thanks to the module cables that can be up to three meters long, multiple adjacent rooms or different directions can be captured with just a single camera. Discreet, flexible, brilliant: a platform with the most flexible codec support: H.264, H.265, MxPEG+, and MJPEG+. ONVIF Profile S and T compliance for maximum interoperability. Up to 4 sensors possible (currently 2 optical / 2 functional modules simultaneously). Triple Shutter WDR with a range of 120 dB. Ready for use in all environmental conditions: -40 to 65 °C. Max. image size: 4K UHD 3840x2160, 16:9.

Key specifications

Network camera type
Outdoor surveillance cameraSurveillance camera indoor
Network interface
Wi-Fi
Power supply
PoE
Type of memory
Memory card
Advanced functions
Motion sensor
Item number
15689972

General information

Manufacturer
Mobotix
Category
Network camera
Manufacturer no.
MX-S74A
Release date
17.4.2021

Colour

Colour
Silver
Exact colour description
Aluminium

Material

Material group
Metal
Material
Aluminium

Camera properties

Network camera type
Outdoor surveillance cameraSurveillance camera indoor
Camera resolution
8 Mpx
Max. picture resolution
3840 x 2160 pixels
Viewing angle (H)
Viewing angle (V)
Viewing angle (D)
Image sensor type
CMOS
Refresh rate
30 FPS
Advanced functions
Motion sensor
Video file formats
H.264H.265MJPEGMxPEG
Audio formats
H.264
Protection type (IP code)
IP66

Connections

Connection A
RJ45USB Type C

Data storage properties

Memory card type
microSDmicroSDHCmicroSDXC
Type of memory
Memory card

Network

Network interface
Wi-Fi

Smart home features

Smart Home
Not compatible

Application range

Installation place
Wall
Application range
Outside

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Camera without sensor module, mounting material, MicroSD card 8GB

Product dimensions

Height
37 mm
Length
141 mm
Width
232 mm
Weight
1400 g

Package dimensions

Length
30 cm
Width
20 cm
Height
9 cm
Weight
2 kg
