Arm-based Computers

Moxa's compact fanless industrial computers based on ARM are wireless-capable and come with comprehensive security features. They are designed for space-critical applications. The computers are specifically built for long-term operation and come with a 10-year support for Moxa Industrial Linux, making them the ideal choice for remote monitoring and data acquisition applications.

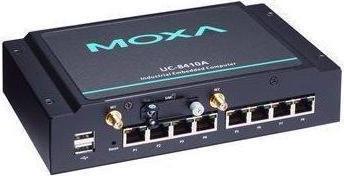

UC-8410A-NW-T-LX
UC-8410A Series
Arm-based wall-mounted industrial computer with Cortex-A7 1 GHz Dual-Core, 1 GB DDR3L RAM, 8 serial ports, 4 digital inputs, 4 digital outputs, 3 Ethernet ports, 1 mSATA slot, 1 USB port, Debian 8, operating temperature from -40 to 75 °C.

Computer

• CPU: Armv7 Cortex-A7 Dual-Core 1 GHz
• System memory pre-installed: 1 GB DDR3L
• Storage pre-installed: 8 GB eMMC
• Memory slots: SD slots x 1, mSATA slots x 1, internal Mini-PCIe socket
• Supported operating system:

Linux Debian 8 (Linux kernel v4.1), 2022 EOL
Moxa Industrial Linux 1 (Debian 9, Kernel 4.4), 2027 EOL

Computer Interface

• Ethernet ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 3
• Serial ports: RS-232/422/485 ports x 8, selectable via software (RJ45)
• USB 2.0: USB 2.0 hosts x 2, Type-A connectors
• Digital input: DIs x 4
• Digital output: DOs x 4
• Console connection: 1 x 4-pin header to DB9 console connector

Ethernet Interface

• Magnetic isolation protection: 1.5 kV (built-in)

Serial Interface

• Baud rate: 50 bps to 115.2 kbps
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: None, even, odd, space, mark
• Flow control: RTS/CTS, XON/XOFF
• ADDC (automatic data direction control) for RS-485: RTS Toggle (only RS-232)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-,...
