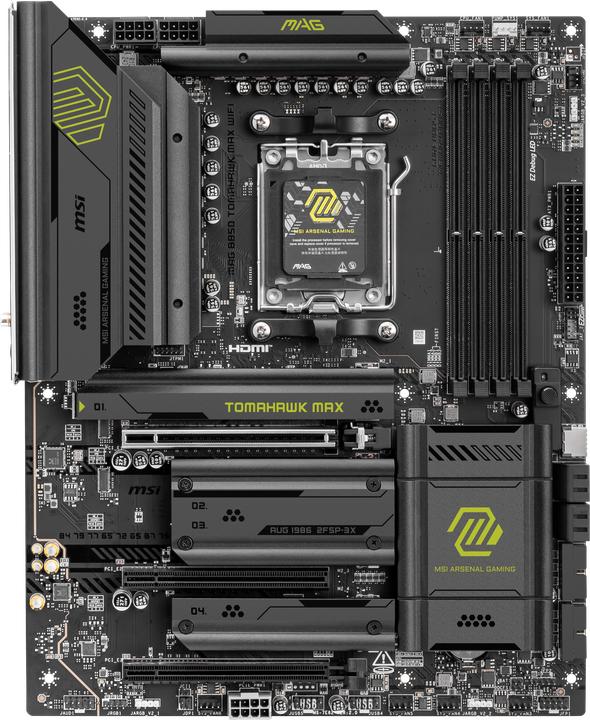

The MSI MAG B850 Tomahawk Max WiFi is a powerful motherboard designed for the AMD Ryzen 7000, 8000 and 9000 series processors. With the AM5 socket, it offers a future-proof platform for demanding PC users. The motherboard supports DDR5 SDRAM with a maximum capacity of 256 GB and enables a high memory speed of up to 8400 MHz. The ATX form factor design ensures easy integration into various cases and offers numerous expansion options. In addition, the mainboard is equipped with state-of-the-art interfaces, including M.2 for fast SSDs and 5 Gigabit Ethernet for a reliable network connection. The integrated Wi-Fi 7 technology enables a fast and stable wireless connection, while Bluetooth ensures connectivity with other devices. The MSI MAG B850 Tomahawk Max WiFi is therefore an excellent choice for anyone looking for a powerful and versatile base for their PC.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (4x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Item number | 53472974 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E62-002R |
Release date | 3.12.2024 |
Sales rank in Category Motherboards | 5 of 892 |
External links |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B850 |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Operating system compatibility | Windows |
BIOS type | UEFI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8400 MHz |
Supported memory speed | 4800 MHz, 5600 MHz, 8400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (4x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 6 |

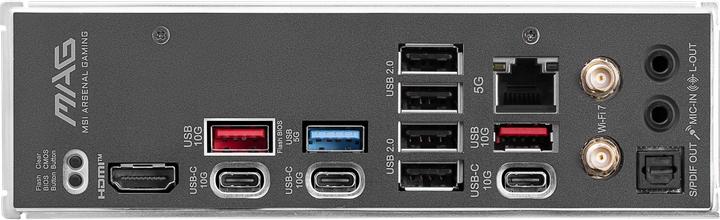

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 2 (3x) |
Country of origin | Taiwan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |

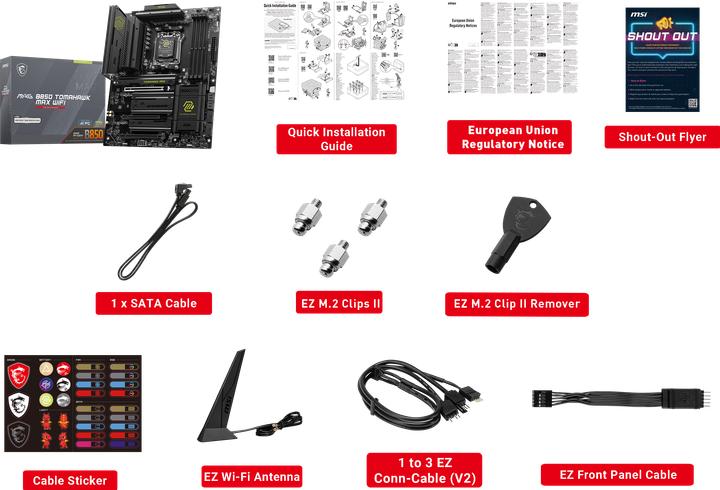

Scope of delivery | 1 piece |
Length | 304.80 mm |
Width | 243.84 mm |
Height | 75 mm |
Length | 35.20 cm |
Width | 27.20 cm |
Height | 7.80 cm |
Weight | 2.05 kg |
Product Safety |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Galaxus
The MSI MAG B850 Tomahawk Max WIFI not only boasts a long product name, but also extensive features reminiscent of high-end boards: It connects to the network via modern Wi-Fi 7 and 5 Gbit/s Ethernet. There are also four M.2 slots for fast SSDs. Two of them even speak PCI Express 5.0...
