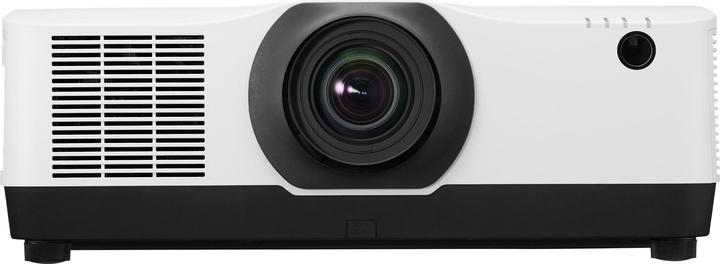

NEC PA804UL
WUXGA, 8200 lm, 1.3 - 3.02:1Product details
A new class of silent projection
Now, larger spaces can also benefit from NEC's innovative super-silent technology with the 8,200 Lumen PA804UL laser projector, ensuring that all attention is focused on the impressive image presentation.
With unprecedented white point performance, factory-calibrated for perfect white, 12-bit color signal processing, and a wide color gamut, the audience will experience exceptionally vibrant color saturation and contrast levels.
Thanks to the newly designed, sealed optical system, there is no possibility of dust contaminating the LCD panels, ensuring long-term image stability and brilliant color brightness. Additionally, our unique filterless LCD projector design and the elimination of lamp replacements significantly reduce service costs, resulting in low operating costs and a lifespan of up to 20,000 hours.
Fully compatible with the mechanical lenses of the previous generation of lamp-based PA series, NEC customers can seamlessly transition to the latest laser technology. The PA804UL is a professional installation projector with advanced installation capabilities required by higher education, leisure, and museum applications.
Projector type | Laser projector, Professional projector |
Projector technology | LCD |
Equipment + Functions | HDBaseT, Integrated loudspeakers, Zoom |
Image resolution | 1920 x 1200 pixels |
Contrast ratio | 3000000:1 |
Max. Projection area (inch) | 500" |
Throw ratio | 1.3 - 3.02:1 |
Item number | 16272348 |
Manufacturer | NEC |
Category | Projector |
Manufacturer no. | 60005035 |
Release date | 4.5.2021 |
Colour | White |
Projector type | Laser projector, Professional projector |
Projector technology | LCD |
Installation place | Ceiling, Ground |
Focus type | Autofocus, Manual focus |
Equipment + Functions | HDBaseT, Integrated loudspeakers, Zoom |
Aspect ratio | 16:10 |
Display resolution | WUXGA |
Image resolution | 1920 x 1200 pixels |
4K Technology | Native Ultra-HD |
Contrast ratio | 3000000:1 |
Brightness (ANSI) | 8200 lm |
Throw ratio type | Variable |
Max. Projection area (inch) | 500" |
Horizontal scanning area | 15 - 153 kHz |
Vertical scanning range | 48 - 120 Hz |
Throw ratio | 1.3 - 3.02:1 |
Min. throw ratio | 1.30:1 |
Max. throw ratio | 3.02:1 |
Image adjustment | Keystone correction |
Zoom type | Auto, Manual |
Projection distance | 0.7 - 50.9 m |
Min. projection distance (metres) | 0.70 m |
Max. projection distance (metres) | 50.90 m |
Video connections | DisplayPort (1x), HDMI IN (2x) |
Audio Connections | Jack 3.5mm Microphone In (1x) |
Data ports | RS-232 (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Network connections | RJ45 (1x) |
Max. noise level | 30 dB |
Noise level in power saving mode | 28 dB |
Bulb type | LED |
Lamp technology | Laser |
Lamp service life | 20000 h |
Power supply | Electrical connection |
Conventional energy consumption | 615 W |
Power consumption (standby) | 0.28 W |
Country of origin | Japan |
Manufacturer commitment | RE100 |
Scope of delivery | AC cable, Wireless remote control |
Length | 490 mm |
Width | 599 mm |
Height | 208 mm |
Weight | 24.10 kg |
Product Safety |
Length | 73 cm |
Width | 62 cm |
Height | 35 cm |
Weight | 28.50 kg |
