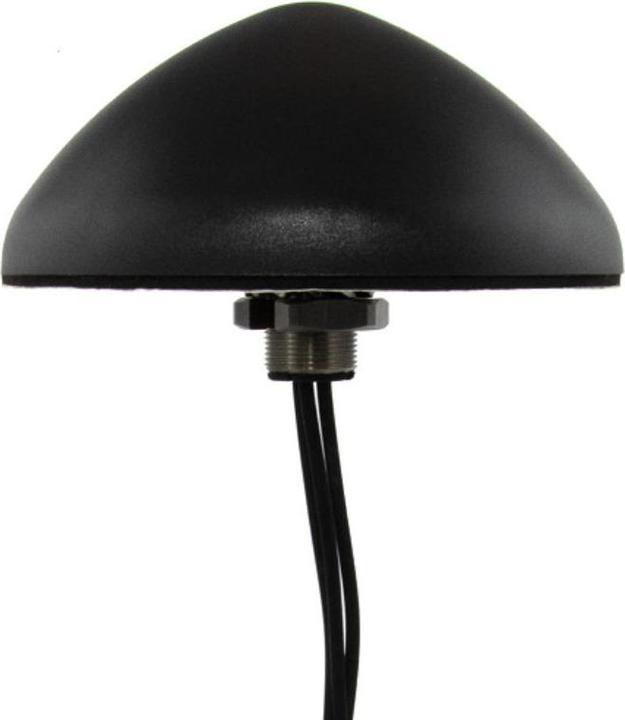

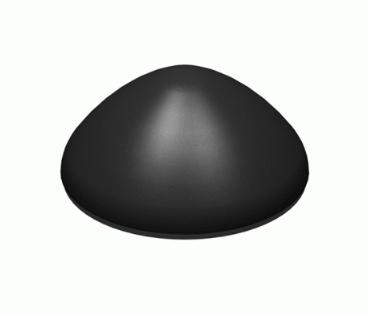

LP-7-38-3SP Low Profile M2M/IOT Antenna 2G/3G/4G/5G 3m SMA(m)

The LP-7-38 antenna series is a range of very flat antennas that combines a broadband mobile phone element covering 4G/5G frequencies with an optional active GPS/GNSS patch featuring a 26dB LNA gain, as well as an optional dual-band WiFi element, all housed in a robust, compact casing.

The antennas are designed to be durable yet cost-effective. They are fully enclosed in a molded housing made of weather- and impact-resistant Lexan EXL plastic, meeting the requirements of UL94-V0 and IK10 according to EN62262.

No ground plane is required. Broadband 4G/5G LTE element. Complies with IK10, IP69K, UL94-V0, UN118.03, UL746C.

Electrical Data:
LTE Frequencies: 698-960/1710-3800MHz
Global Positioning: No
WiFi Frequencies: No
Peak Gain (dBi): 1dBi (698-960MHz); 6dBi (1710-2700MHz)
Maximum Input Power (W): 20
Independent of Ground Plane: Yes

Mechanical Data:
Height (mm): 49.5
Diameter (mm): 111

Mounting Data:
Mounting Type: Panel Mount
Mounting Method: 18mm (3/4") Mounting Socket

Approval Data:
Vandal Resistance: IK10
IP Rating: IP69K
Flame Retardant: UL94-V0; UN118.01/DE6722.
