The PATCHBOX® Plus+ OS2 is a state-of-the-art cabling system that is fast, neat, and organized. It completely replaces conventional cable management and patch cables with an all-in-one solution. The PATCHBOX® Plus+ OS2, with its self-retracting patch cables, provides users with the exact cable length needed. No excess cable means no more cable clutter. Installation time is drastically reduced, and thanks to the clarity and logic that the system brings, maintenance can be performed remotely, saving costs.

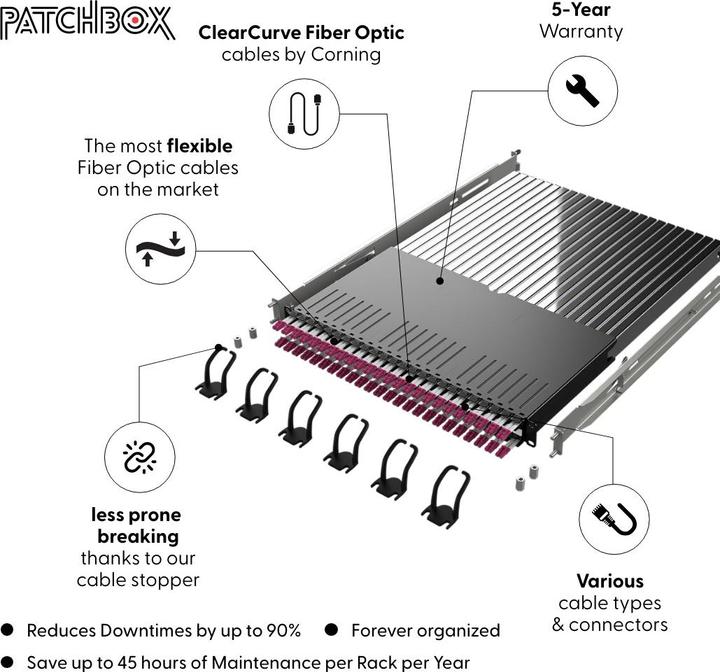

Up to 1.7 m of retractable patch cable, 100% tested cable brake to adjust cables at extended length. Patchcatch - the cable management that requires no rack units. Labeling is possible directly on the front of the cassette. Completely tool-free cassettes with snap-in function in the frame. Cassettes are easy to swap. Cable storage for unused patch cables in the cabinet.

Main features:

• Network Duplex: Yes
• Number of ports: 24
• Connector: LC-SC
• Product color: Black, Silver
• Material: Plastic, Stainless Steel
• Rack mountable: Yes
• Rack capacity: 1U
• Mounting: 48.30 cm (19")
• Enhanced cable management: Yes
• Cable length: 1.7 m
• Cable sheath material: LSZH (LS0H)
• Label holder: Yes
• RoHS compliant: Yes
• Certification: CE

Operating conditions:

• Operating temperature range: 10 - 45 °C
• Operating humidity: 10 - 95 %

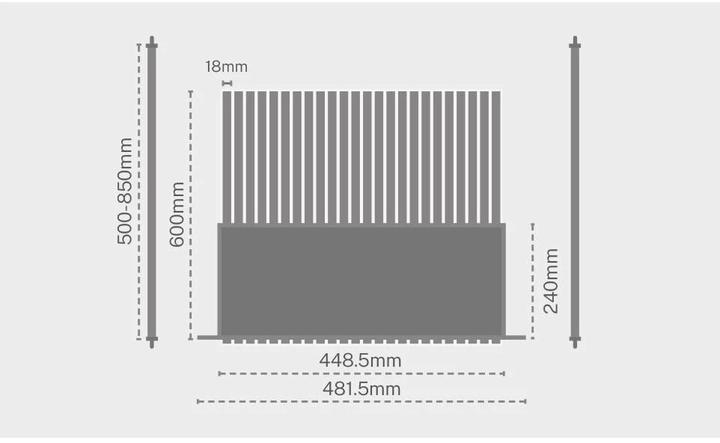

Weight & dimensions:

• Width: 482.6 mm
• Height: 43.7 mm
• Depth: 600 mm

Packaging information:

• Packaging width: 590 mm
• Packaging depth: 790 mm
• Packaging height: 50 mm
• Package weight: 12 kg

Technical details:

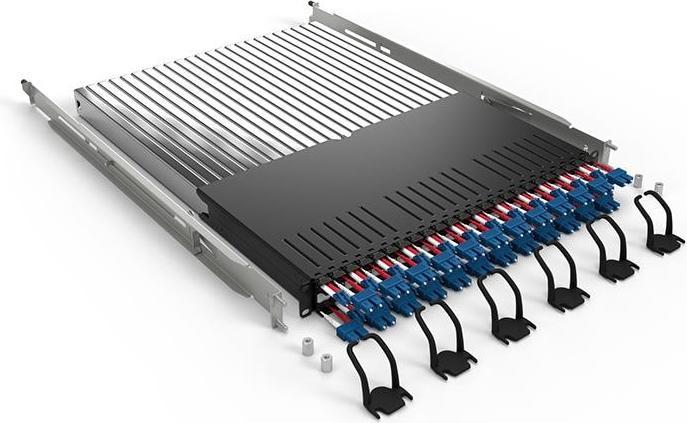

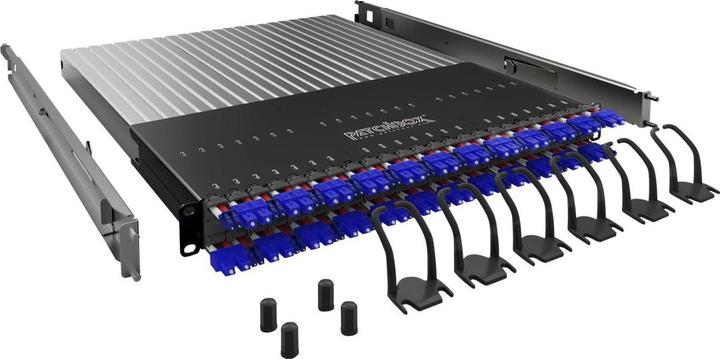

Contents: 24 cassettes with OS2 patch cables, 6 Patchcatch, 1 PATCHBOX® frame, 2 adjustable mounting rails including HEX nuts, 2 DIN A5 tear-off labels (96 labels).
