Output type: Voltage
Input range: 4 to 20 mA
Output range: 0 to 10 V
Supply voltage: 24 VDC
Mounting type: DIN rail
Operating temperature min: -20°C
Operating temperature max: +65°C
Operating temperature range: -20 to +65°C

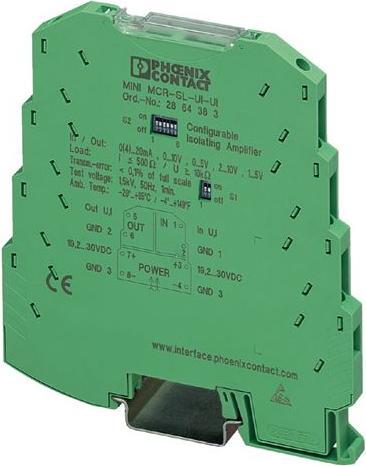

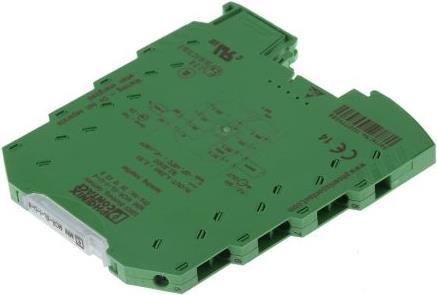

CE certified mini MCR standard signal isolation amplifier. Features standardized input and output signals with 3-way isolation and screw connection. Construction width is 6.2 mm, with power supply via power terminal. Accessories include a swiveling transparent cover with additional labeling possibility via label for the transparent cover.
