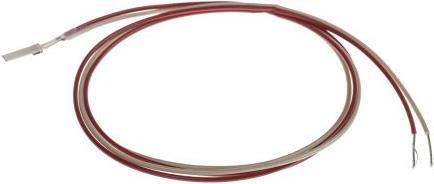

Sensor type = Pt1000
Sensor length = 10mm
Sensor diameter = 2mm
Temperature detected min. = -50°C
Temperature detected max. = +250°C
connection type = conductor
cable length = 500mm
Probe material = platinum
Number of cables = 2
Accuracy = Class B

Suitable for air, surface and immersion applications (if protected) Suitable only in dry, non-polluting atmospheres, if protected. Suitable protection/sheathing required for immersion in liquids, corrosive substances, processes, etc. Platinum resistance detectors with extension cables. Pt100 and Pt1000 platinum resistance detectors with extension leads. Thin film construction, Class A or B Fast response time Extension cable lengths of 300, 500 or 1000 mm 2 or 4 cable configurations Operating range from -50 ºC to +250 ºC Vibration resistant.
