Switching sequence: Momentary
Contact arrangement: Double-pole double-throw switch (DPDT)
Mounting type: Front panel mounting
Panel cutout diameter: 30.2 mm
Rated contact current: 5 A @ 250 V AC
Rated AC contact voltage: 250 V
Rated voltage: 12 V
Illuminated: Yes
Actuator color: White
LED color: Blue, Green, Red
Labeling: Operating indicator

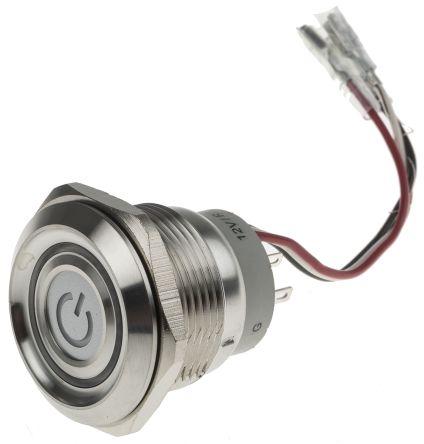

Vandal-resistant illuminated push buttons, Ø30 mm. The switches feature illumination in the center and around the ring. The colors when not pressed are Green (center) and Red (ring); when pressed, the ring color changes to Blue and the center does not illuminate. Impact resistance: IK03. Socket material: Painted / polished stainless steel.
