Switching sequence = latching
Contact arrangement = Single pole changeover switch (SPDT)
Mounting = Front panel mounting
Panel cutout Size = 16 (slide)mm
Panel cut-out diameter = 16mm
Rated contact current = 3 A @ 250 V ac
Contact AC nominal voltage = 250V
Nominal voltage = 250V ac
Illuminated = Yes
LED Color = White
Operating temperature max. = +55°C

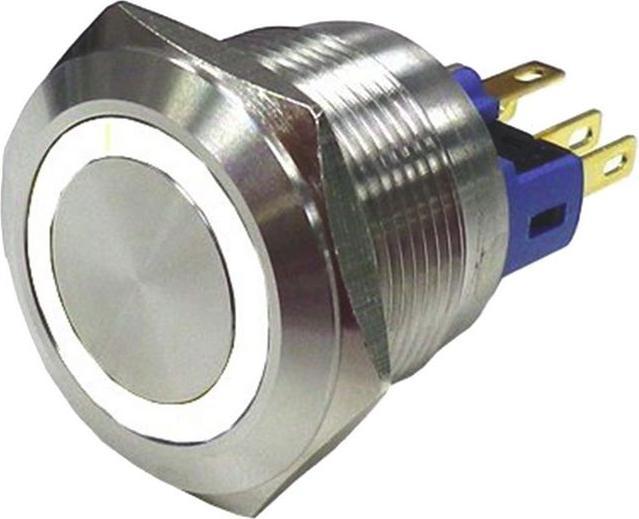

Vandal resistant pressure switch, 16 mm. Resistant to physical attack and suitable for all applications requiring resistance to water and dust ingress, e.g. public kiosks, outdoor boards or open dashboards. Stainless steel ring light construction in a choice of 5 colour LED options with 12 or 24 V IP67 protection above the plate.
